Transaxle Connector Layouts

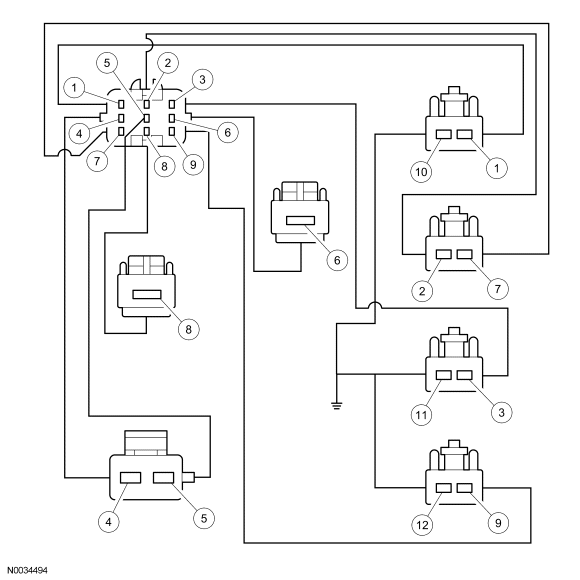

TRANSAXLE SOLENOID LOCATION
| Item | Description |
|---|---|
| 1 | SSA |
| 2 | SSB |
| 3 | SSC |
| 4 | SSD |
| 5 | SSE |
| 6 | PCA |
| Pin | Circuit Function | Connector Color |
|---|---|---|
| 1 | SSE | Green |
| 2 | PCA | Black |
| 3 | SSC | White |
| 4 | TFT SIGRTN | Black |
| 5 | TFT | Black |
| 6 | SSA | White |
| 7 | PCA | Black |
| 8 | SSB | Black |
| 9 | SSD | Blue |
| 10 | SSE GROUND | Green |
| 11 | SSC GROUND | White |
| 12 | SSD GROUND | Blue |
| Pin Number | 225 Pin PCM | Circuit Function |
|---|---|---|
| 1 | 34 | SSE |
| 2 | 9 | PCA |
| 3 | 44 | SSC |
| 4 | 41 | TFT signal return |
| 5 | 29 | TFT |
| 6 | 42 | SSA |
| 7 | 11 | PCA |
| 8 | 43 | SSB |
| 9 | 46 | SSD |
| Pin Number | 225 Pin PCM | Circuit Function |
|---|---|---|
| 1 | 1 | VPWR |
| 2 | 19 | Drive position |
| 3 | 12 | 1st position |
| 4 | 27 | Reverse position |
| 5 | 16 | Park position |
| 6 | 6 | Starting system |
| 7 | 28 | 2nd position |
| 8 | 16 | Neutral position |
| 9 | 9 | Starting system |
| Pin Number | Circuit Function |
|---|---|
| 1 | Output shaft speed sensor (OSS) |
| 2 | Signal return |
TRANSMISSION RANGE (TR) SENSOR DIAGNOSIS CHART
| Selector Position | TR Sensor Pins Component Side | Expected Value |
|---|---|---|
| PARK | 1 and 2, 3 and 4 | Less than 5 ohms |
| REVERSE | 3 and 5 | Less than 5 ohms |
| NEUTRAL | 1 and 2, 3 and 6 | Less than 5 ohms |
| DRIVE | 3 and 7 | Less than 5 ohms |
| 2 | 3 and 8 | Less than 5 ohms |
| 1 | 3 and 9 | Less than 5 ohms |
TRANSMISSION RANGE (TR) SENSOR DIAGNOSIS PID CHART
| Selector Lever Position | PID: TR | TR_4 | TR_3 | TR_2 | TR_1 |
|---|---|---|---|---|---|
| PARK or NEUTRAL | P/N | 0 | 0 | 0 | 0 |
| REVERSE | REV | 1 | 0 | 0 | 0 |
| DRIVE | O/D | 0 | 1 | 0 | 0 |
| Manual 2 | Man 2 | 0 | 0 | 1 | 0 |
| Manual 1 | Man 1 | 0 | 0 | 0 | 1 |
| Pin Number | Circuit Function |
|---|---|
| 1 | Turbine shaft speed sensor (TSS) |
| 2 | Signal return |
