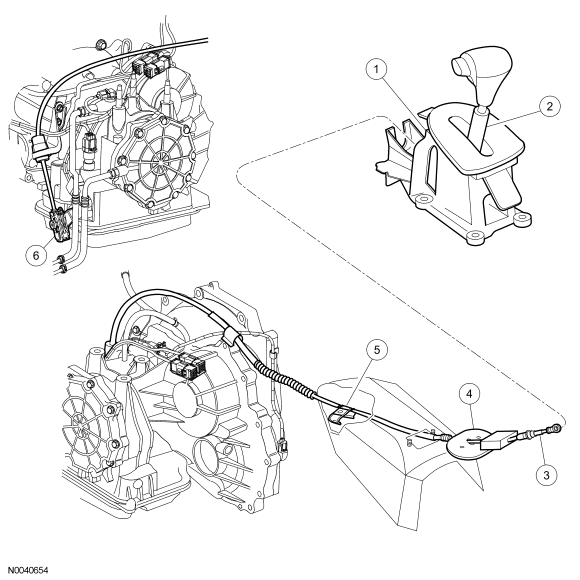

External Shift Mechanism
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Selector lever assembly |
| 2 | - | Selector lever |
| 3 | - | Selector lever cable |
| 4 | - | Lead-through |
| 5 | - | Clip |
| 6 | - | Lever on shift shaft |
The transmission end of the manual selector lever cable is attached to a ball on the lever on the manual shaft.
The cable abutments are secured to the transmission housing, and then to the bracket of the manual selector lever.
The adjuster for the manual selector lever cable is located at the transmission side of the sheath.
At the manual selector lever end the cable is clipped onto a ball.
