Block Heater

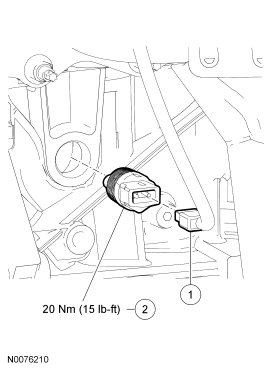

Fig 1: Block Heater And Block Heater Electrical Connector With Torque Specifications
GF0039398Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Block heater electrical connector
2 6A051 Block heater
  1. Drain the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding .
    2. NOTE: Make sure that the block heater wiring is routed and secured away from rotating or hot components, or damage to the wiring can occur.
  2. Disconnect the block heater electrical connector.
    3. Fig 2: Locating Block Heater Electrical Connector
    GF0024121Courtesy of FORD MOTOR CO.
  3. Remove the block heater.
    • To install, tighten to 20 Nm (15 lb-ft).
    4. Fig 3: Locating Block Heater
    GF0009034Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
  5. Fill and bleed the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding e.
