Seat Cushion - Rear: Notes

NOTE: Four-door shown, others similar.

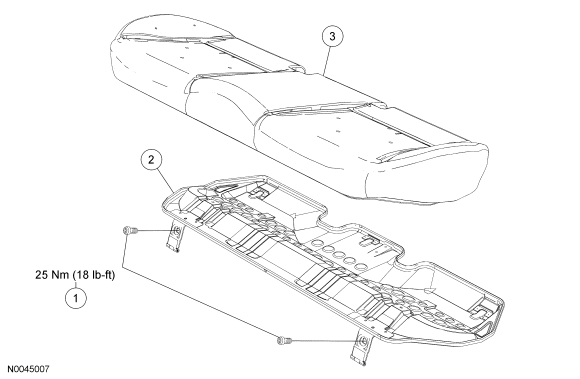

Fig 1: Exploded View Of Seat Cushion - Rear With Torque Specifications
GF0038741Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W704251 Bolts, rear seat cushion (2 required)
2 63160 Cushion frame
3 63804/600A88 Cushion trim cover/foam pad
