Transmission Fluid Pan: Notes

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V
Motorcraft Metal Surface Cleaner ZC-21	WSE-M5B392-A
Ultra Silicone Sealant TA-29	-

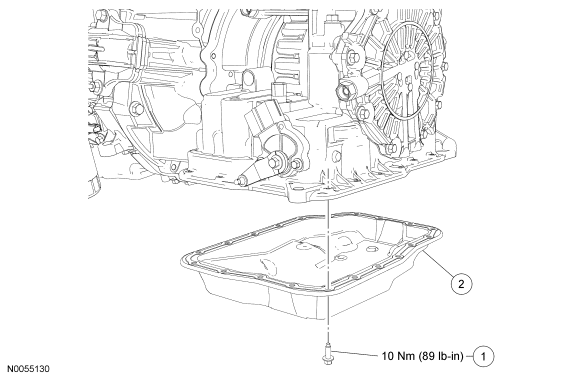

Fig 1: Transmission Fluid Pan Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500213-S437	Transmission fluid pan bolt (20 required)
2	7A194	Transmission fluid pan
