Steering Column: Notes

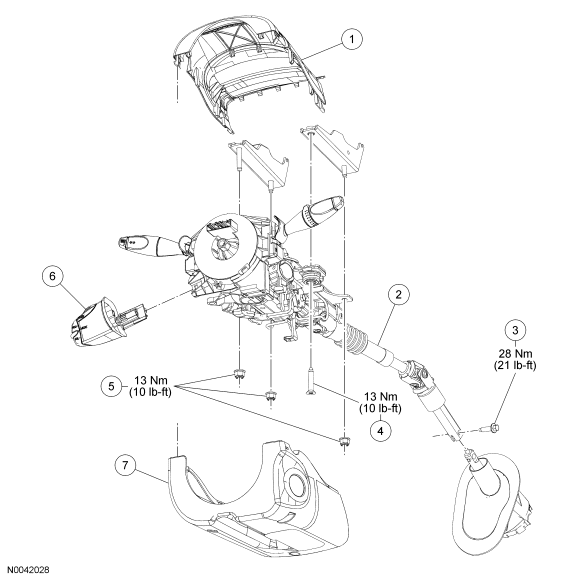

Fig 1: Steering Column Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3530	Upper steering shroud
2	3C529	Steering column
3	W706229	Steering shaft pinch bolt
4	W703601	Steering column mounting bolt
5	W520202	Steering column mounting nuts
6	14K147	Audio control switch (if equipped)
7	3530	Lower steering column shroud
