EVAP Canister Vent Control Connector

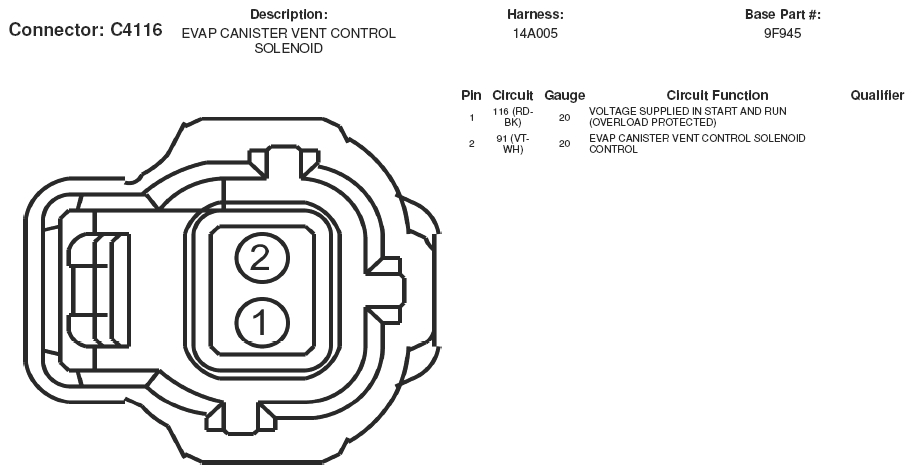

Fig 1: EVAP Canister Vent Control Connector End View (C4116)

G05168937

Courtesy of FORD MOTOR CO.
