Steering Gear: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| C-Frame and Screw | 211-023 (T74P-3044-A1) |

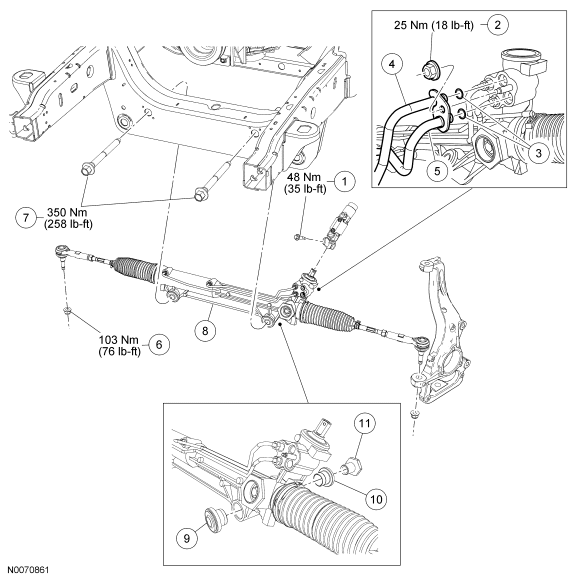

| Item | Part Number | Description |
|---|---|---|
| 1 | W710570 | Steering column shaft-to-steering gear bolt |
| 2 | W520413 | Steering line clamp plate nut |
| 3 | N803257 | O-ring seals (1 each required) |
| 4 | 3F780 | Power steering fluid cooler |
| 5 | 3A719 | Pressure line |
| 6 | W520215 | Tie-rod end nuts (2 required) |
| 7 | W710466 | Steering gear-to-crossmember bolts (2 required) |
| 8 | 3504 | Steering gear |
| 9 | 3C716A | Forward steering gear bushing (2 required) |
| 10 | 3C716B | Rearward steering gear bushing (2 required) |
| 11 | W710283 | Steering gear-to-crossmember nut (2 required) |
