Transmission Control Module 6R60 Connector

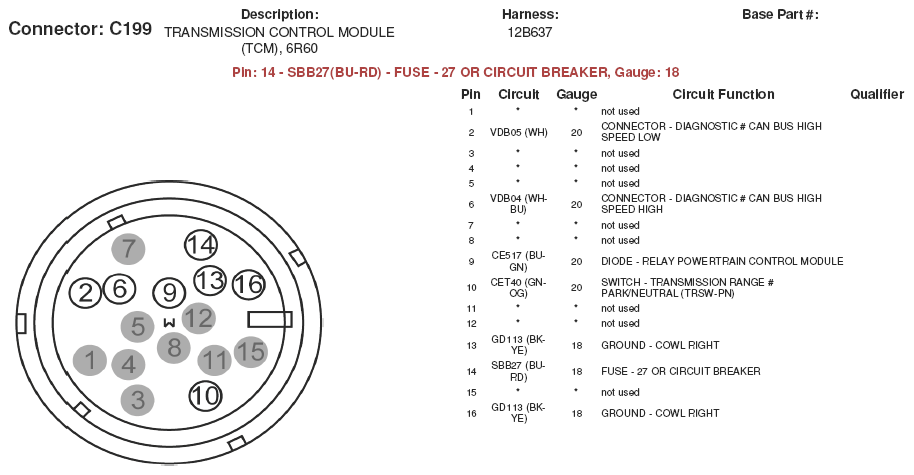

Fig 1: Transmission Control Module 6R60 Connector End View (C199)

G05166693

Courtesy of FORD MOTOR CO.
