Traction Control Switch Connector

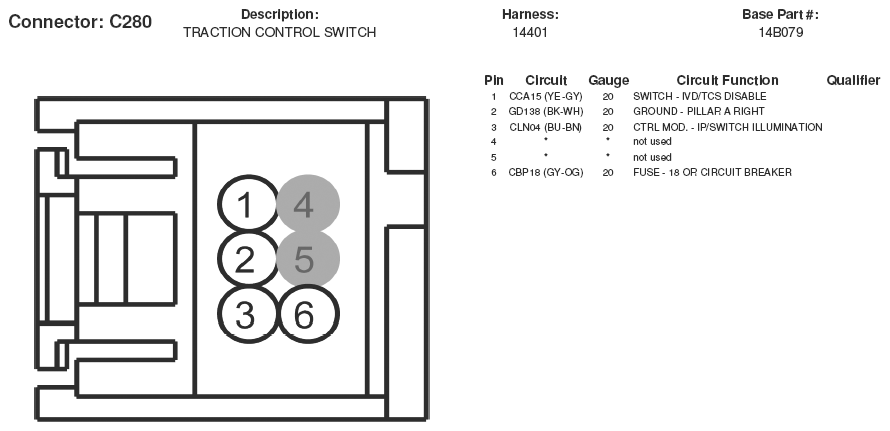

Fig 1: Traction Control Switch Connector End View (C280)
G05166726Courtesy of FORD MOTOR CO.
