Steering Wheel/Speed Control Switch Connectors

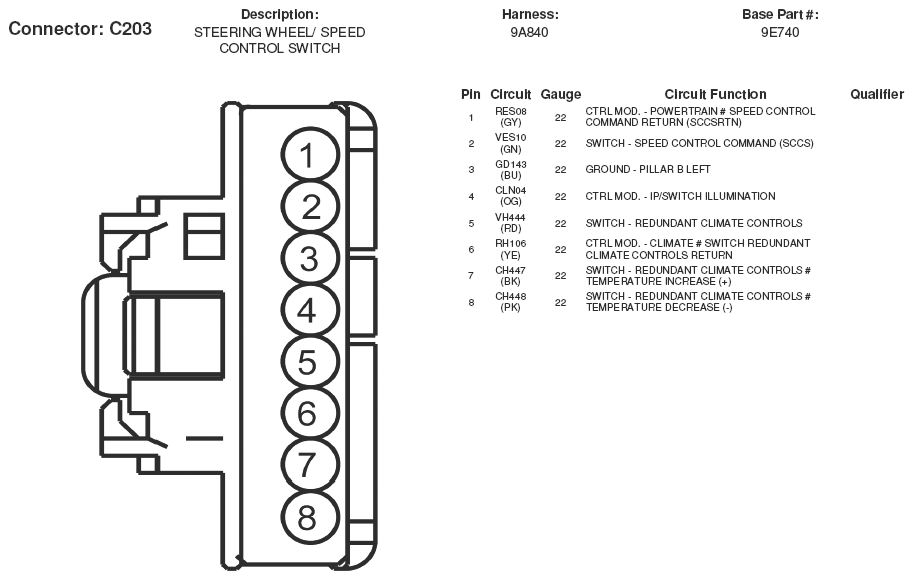

Fig 1: Steering Wheel/Speed Control Switch Connector End View (C203)

G05166695

Courtesy of FORD MOTOR CO.
