Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector Views
>>
Homelink Module Connector
Homelink Module Connector

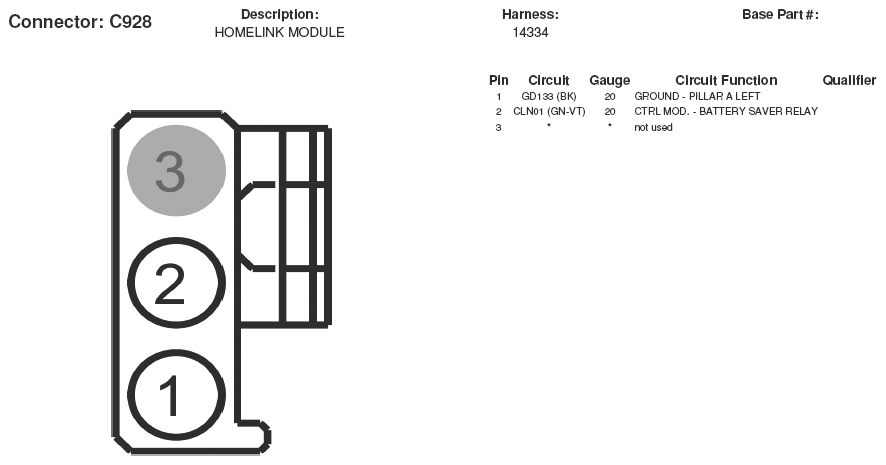

Fig 1: Homelink Module Connector End View (C928)
Courtesy of FORD MOTOR CO.

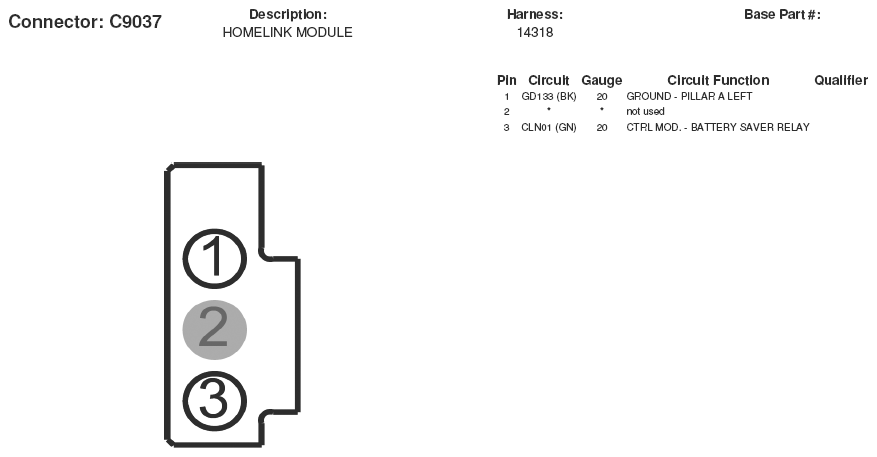

Fig 2: Homelink Module Connector End View (C9037)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
