Deployable Steering Column Connector

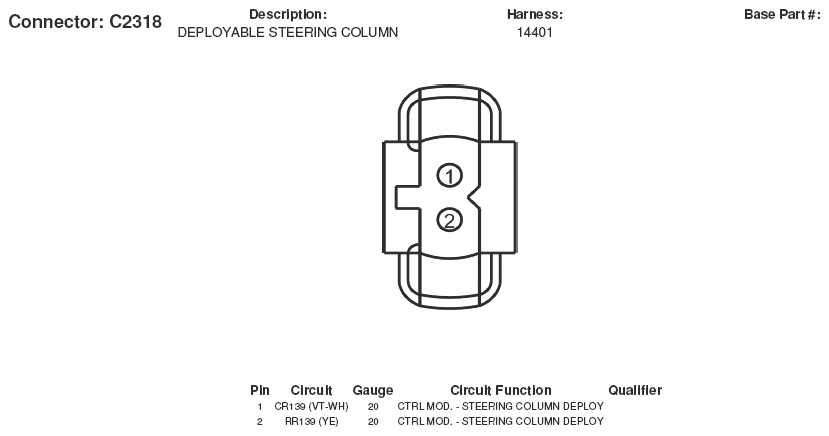

Fig 1: Deployable Steering Column Connector End View (C2318)

G05166924

Courtesy of FORD MOTOR CO.
