Audio Control Switch / Climate Control Switch Connector

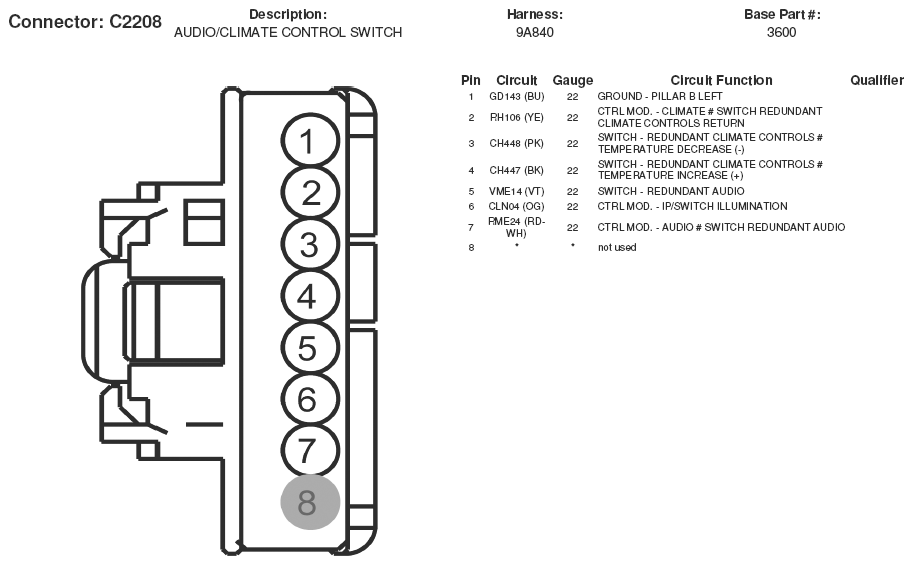

Fig 1: Audio Control Switch / Climate Control Switch Connector End View (C2208)

G05166914

Courtesy of FORD MOTOR CO.
