Crossmember - 1B: Notes

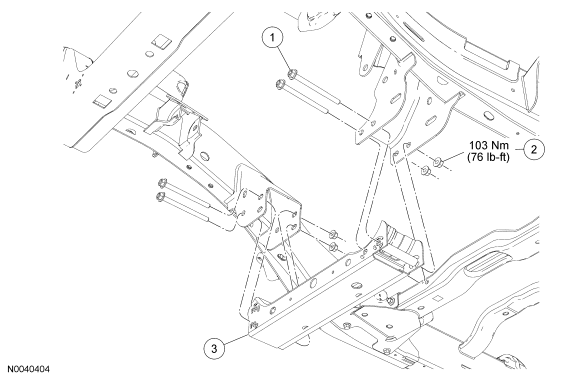

Fig 1: Exploded View Of 1B Crossmember With Torque Specification
GF0026798Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W709834 1B crossmember bolt (4 required)
2 W520114 1B crossmember nut (4 required)
3 5E138 1B crossmember
