Frame-Mounted Heat Shields

The frame-mounted heat shields are attached to the top of the frame and crossmember with bolts. The body must be lifted off the frame enough for access to the bolts that attach the heat shields to the top of the frame.

NOTE: Portions of the frame are removed from this drawing to show the location of the inserts.

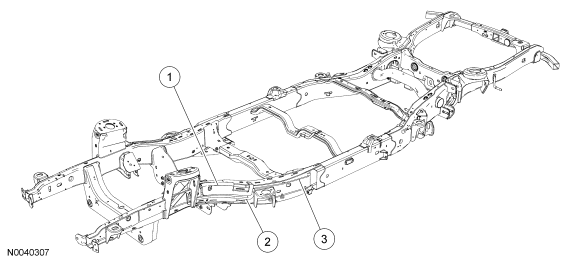

Fig 1: View Of Frame-Mounted Heat Shields Structural Enhancement - Explorer/Mountaineer

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Exterior frame reinforcement
2	-	Fore reinforcement
3	-	Aft reinforcement

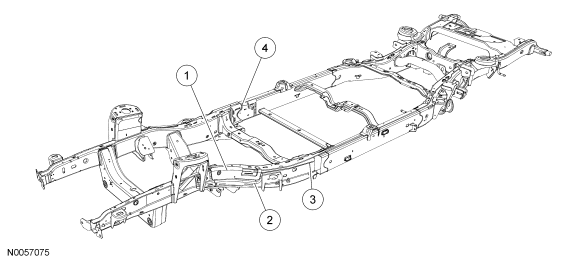

Fig 2: View Of Frame-Mounted Heat Shields Structural Enhancement - Explorer Sport Trac

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Exterior frame reinforcement
2	-	Fore reinforcement
3	-	Aft reinforcement
4	-	External reinforcement

The purpose of these inserts is to enhance the structural rigidity of the frame in this area. The inserts cannot be replaced or repaired.
