Fuel Pump Driver Module (FPDM): Notes

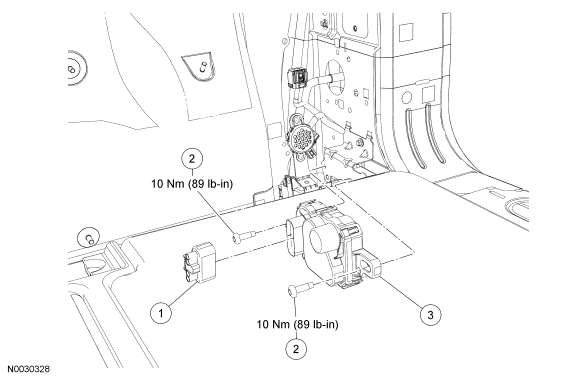

Fig 1: Exploded View Of Fuel Pump Driver Module (FPDM) With Torque Specifications
GF0027047Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Fuel pump driver module (FPDM) electrical connector
2 W504755 FPDM bolts (2 required)
3 9D370 FPDM
