Transmission Fluid Cooler Hoses: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Disconnect Tool, Transmission Cooler Line | 307-459 |

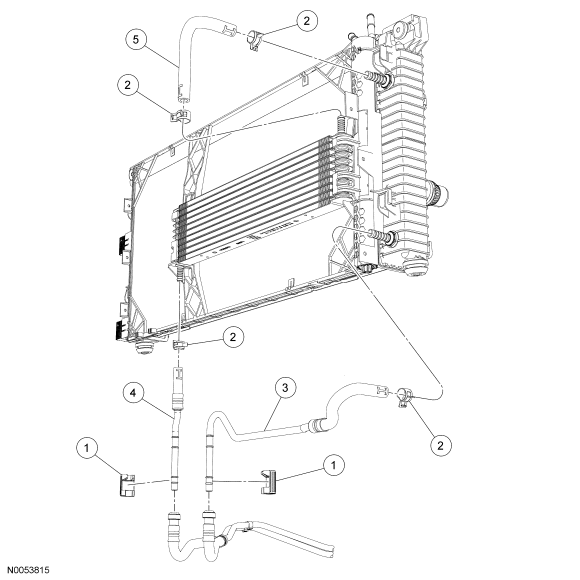

| Item | Part Number | Description |
|---|---|---|
| 1 | 7J081 | Transmission fluid cooler inlet and outlet tube secondary latches |
| 2 | 8287 | Transmission fluid cooler hose clamp |
| 3 | 7B028 | Transmission fluid cooler inlet hose |
| 4 | 7F112 | Auxiliary transmission fluid cooler outlet hose |
| 5 | 7F113 | Auxiliary transmission fluid cooler inlet hose |
