Power Steering Pump Pulley: Notes

Special Tools

Illustration Tool Name Tool Number
GF0001265
 Remover, Power Steering Pump Pulley 211-016 (T69L-10300-B)
GF0001266
 Installer, Power Steering Pump Pulley 211-185 (T91P-3A733-A)

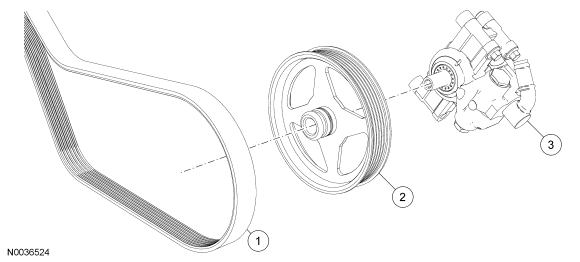

Fig 1: Exploded View Of Power Steering Pump Pulley
GF0014235Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8620 Accessory drive belt
2 3A733 Power steering pump pulley
3 3A674 Power steering pump
