Exhaust Manifold - RH: Notes

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-

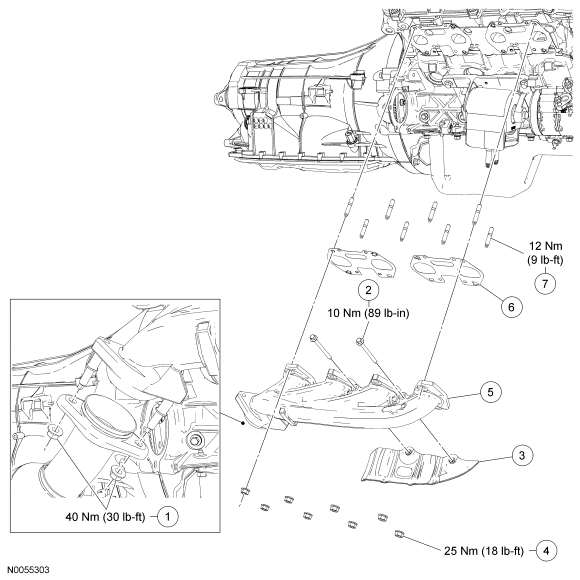

Fig 1: Exploded View Of Right Exhaust Manifold With Torque Specifications

GF0022021

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705443	Exhaust Y-pipe flange nuts (2 required)
2	-	Exhaust manifold heat shield bolt (2 required)
3	-	Exhaust manifold heat shield
4	W701706	Exhaust manifold nut (8 required)
5	9430	Exhaust manifold
6	9Y431	Exhaust manifold gasket (2 required)
7	W707747	Exhaust manifold stud (8 required)
