Exhaust Manifold - LH: Notes

Material

Item	Specification
Motorcraft Metal Surface Prep ZC31	-

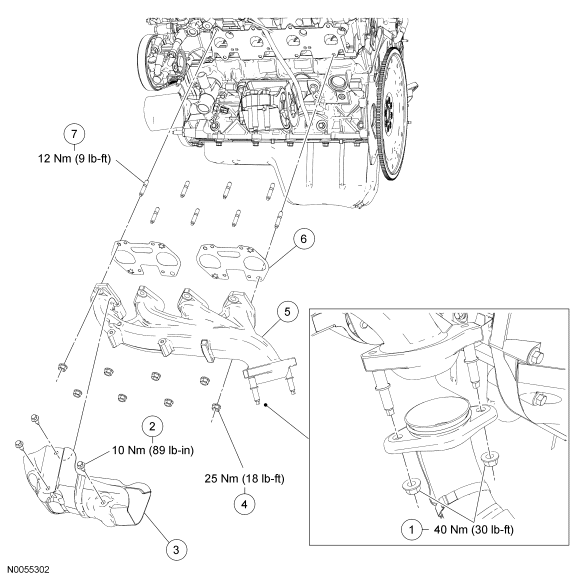

Fig 1: Exploded View Of Left Exhaust Manifold With Torque Specifications

GF0022022

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705443	Exhaust Y-pipe flange nuts (2 required)
2	W707130	Exhaust manifold heat shield bolt (3 required)
3	9Y427	Exhaust manifold heat shield
4	W701706	Exhaust manifold nut (8 required)
5	9431	Exhaust manifold
6	9Y431	Exhaust manifold gasket (2 required)
7	W707747	Exhaust manifold stud (8 required)
