Removal And Installation: Radiator: Notes

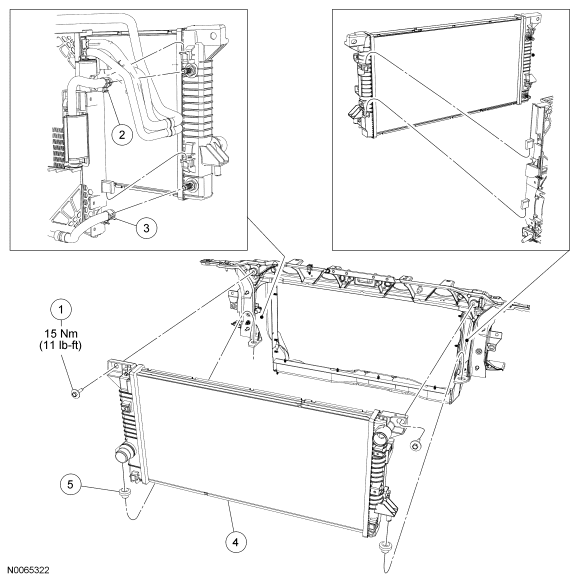

Fig 1: Exploded View Of Radiator With Torque Specifications
GF0022065Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W503924 Radiator support bolt (2 required)
2 7F113 Transmission fluid cooler-to-radiator upper hose
3 7B028 Transmission fluid cooler-to-radiator lower hose
4 8005 Radiator
5 8B204 Radiator insulator (2 required)
