Trunk Perimeter Disarm Switch Connector

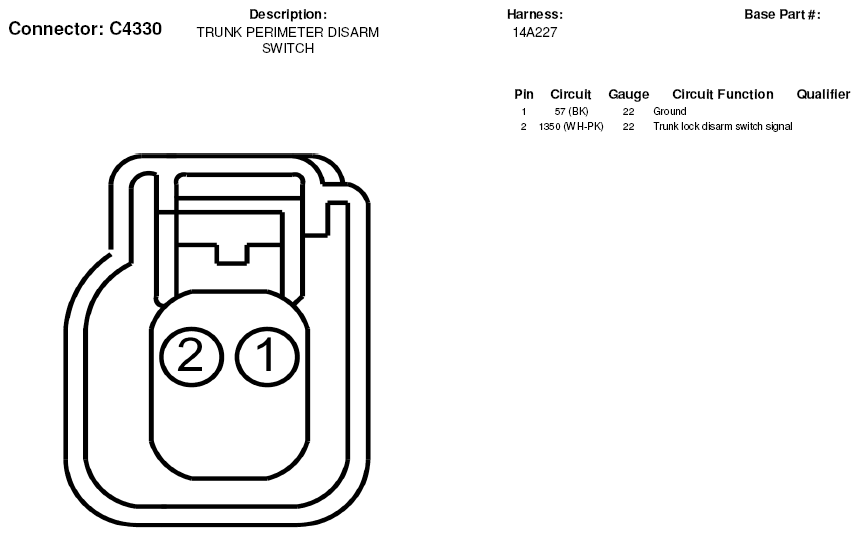

Fig 1: Trunk Perimeter Disarm Switch Connector End View (C4330)

G05179371

Courtesy of FORD MOTOR CO.
