Strobe/ Light Bar Control Connectors

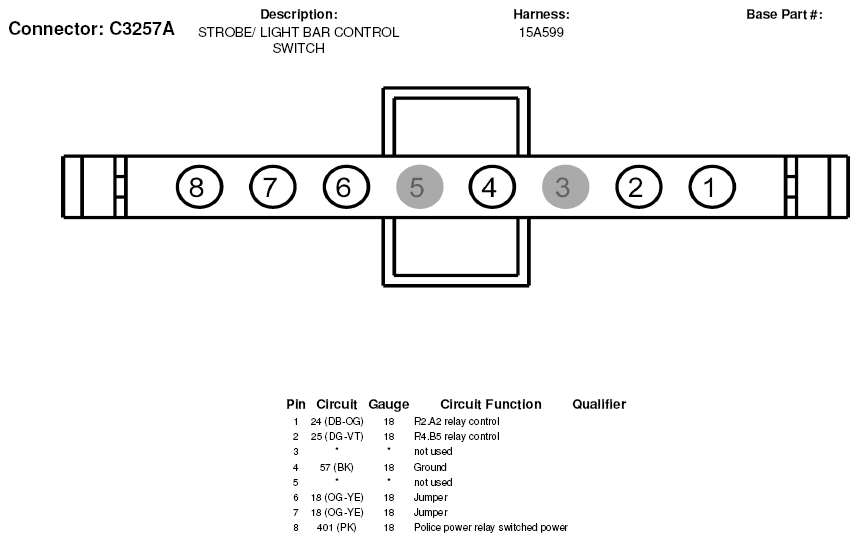

Fig 1: Strobe/ Light Bar Control Connector End View (C3257A)
G05179335Courtesy of FORD MOTOR CO.

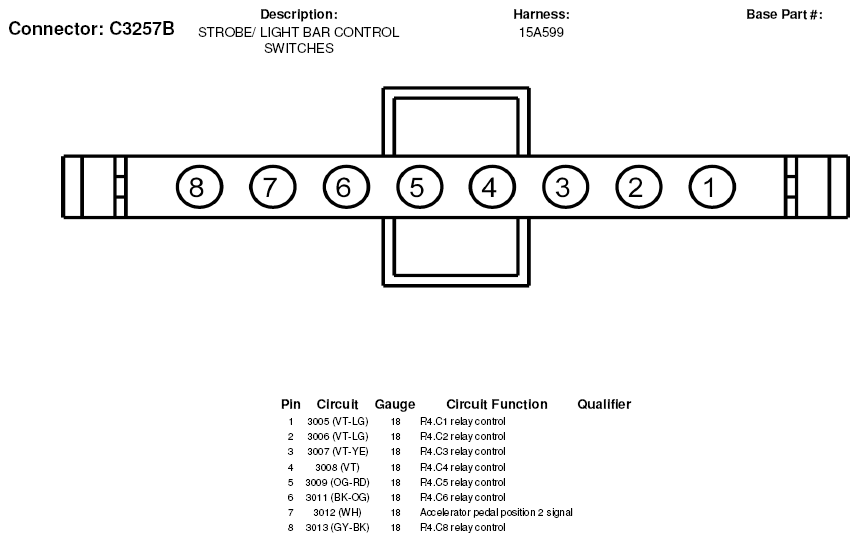

Fig 2: Strobe/ Light Bar Control Connector End View (C3257B)
G05179336Courtesy of FORD MOTOR CO.
