Rear Window Defrost Switch Connectors

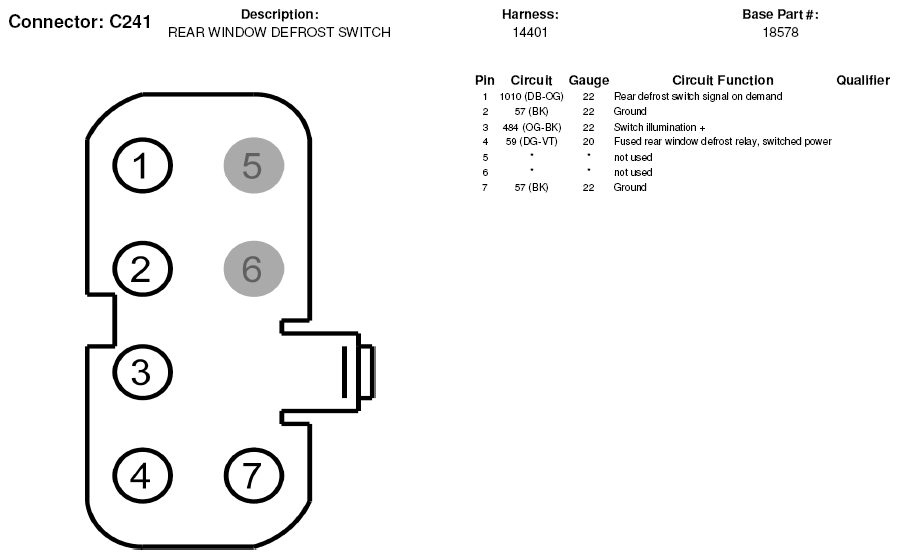

Fig 1: Rear Window Defrost Switch Connector End View (C241)

G05179120

Courtesy of FORD MOTOR CO.
