Passive Anti-Theft Transceiver Connector

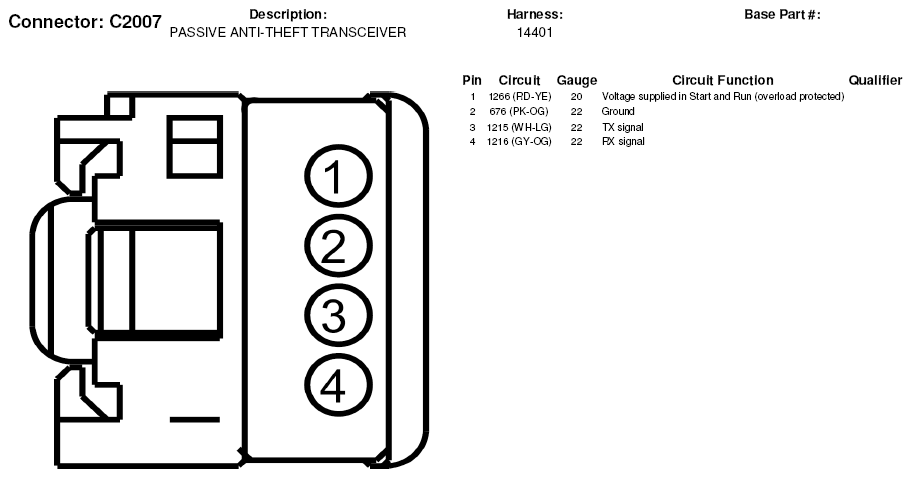

Fig 1: Passive Anti-Theft Transceiver Connector End View (C2007)

G05179300

Courtesy of FORD MOTOR CO.
