Output Shaft Speed Sensor Connector

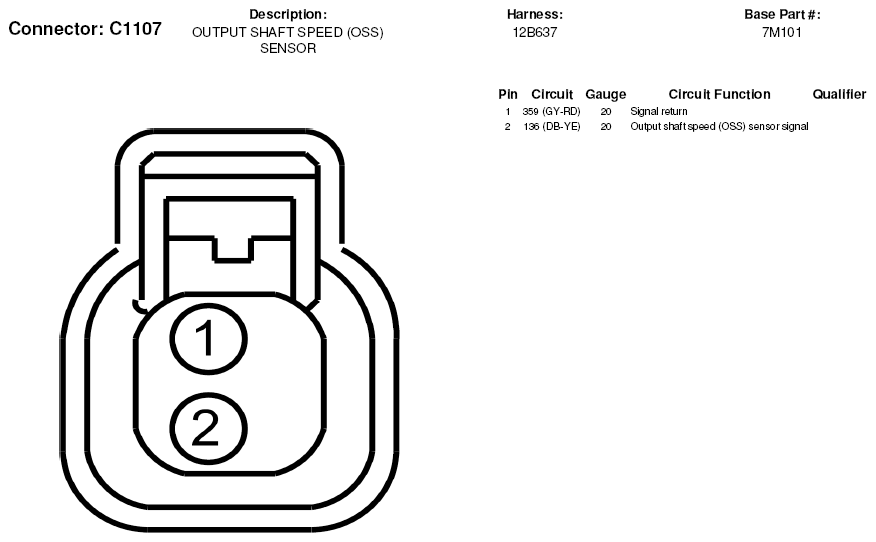

Fig 1: Output Shaft Speed Sensor Connector End View (C1107)

G05179268

Courtesy of FORD MOTOR CO.
