Inline Connectors

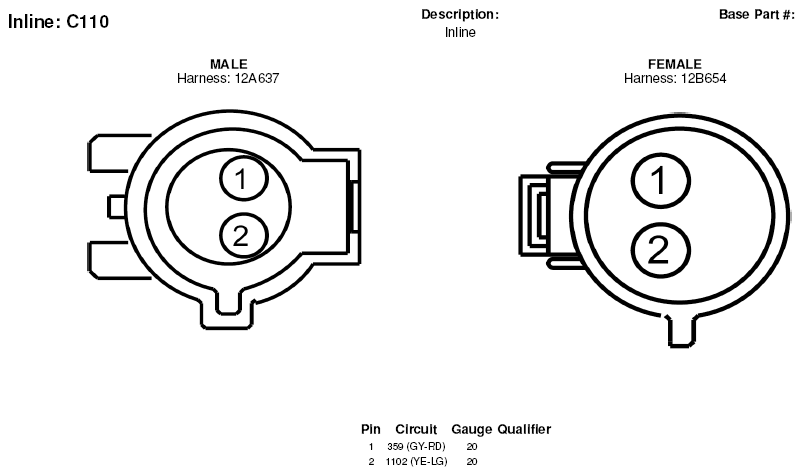

Fig 1: Inline Connector End View (C110)

G05179049

Courtesy of FORD MOTOR CO.

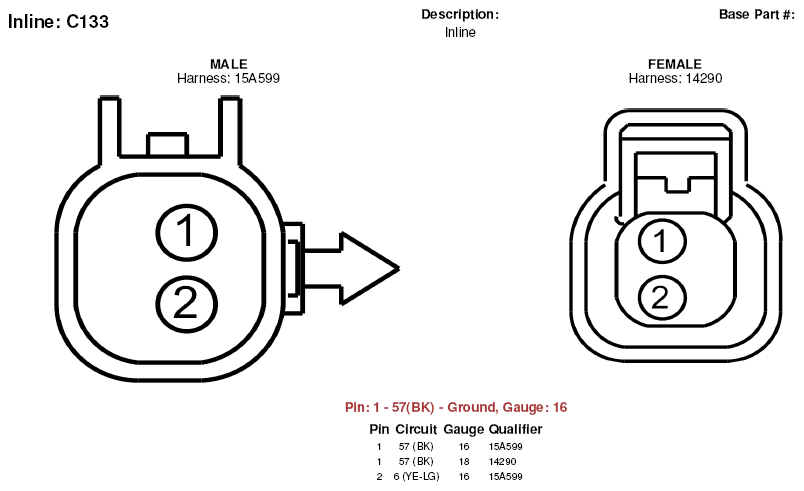

Fig 2: Inline Connector End View (C133)

G05179065

Courtesy of FORD MOTOR CO.

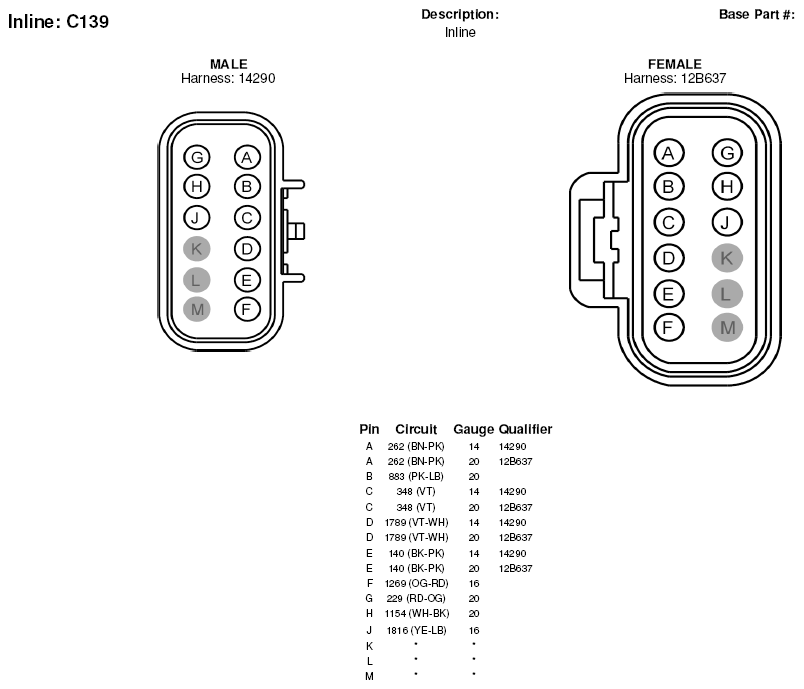

Fig 3: Inline Connector End View (C139)

G05179069

Courtesy of FORD MOTOR CO.

Fig 4: Inline Connector End View (C146)

G05179074

Courtesy of FORD MOTOR CO.

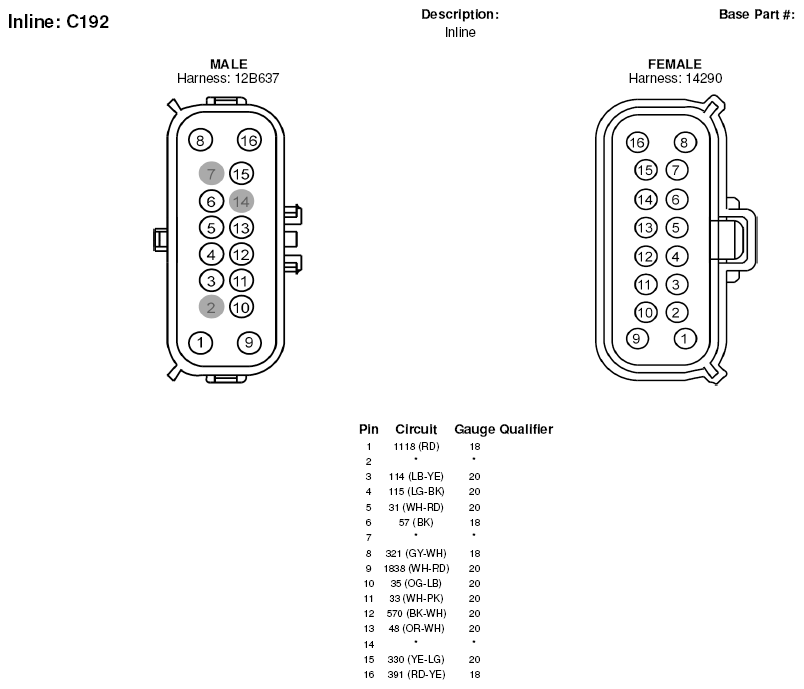

Fig 5: Inline Connector End View (C192)

G05179097

Courtesy of FORD MOTOR CO.

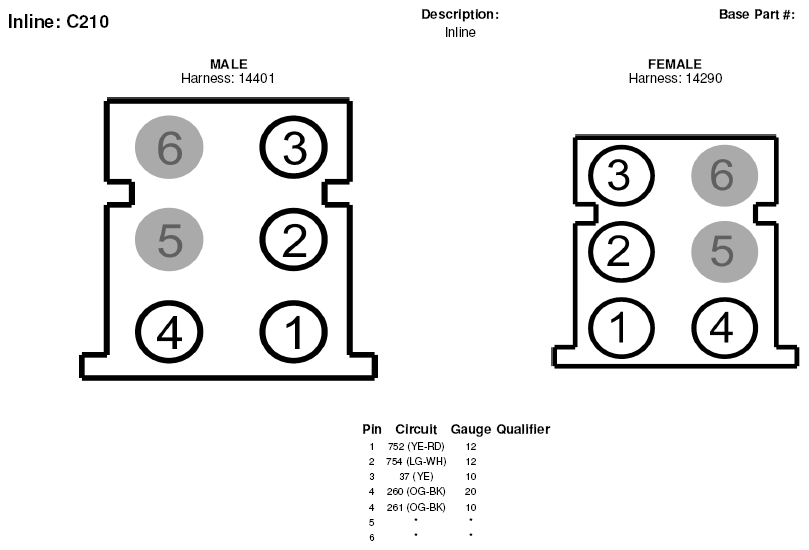

Fig 6: Inline Connector End View (C210)

G05179106

Courtesy of FORD MOTOR CO.

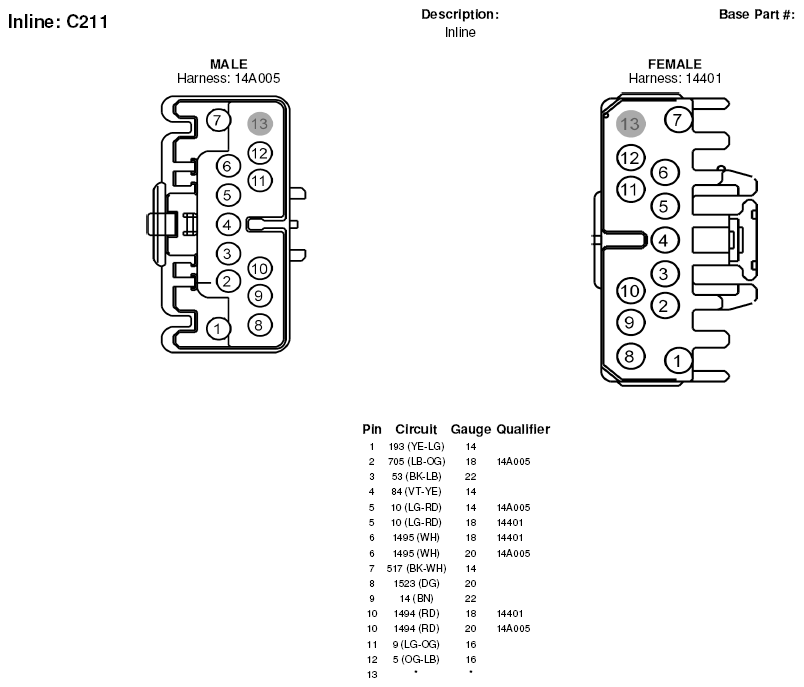

Fig 7: Inline Connector End View (C211)

G05179107

Courtesy of FORD MOTOR CO.

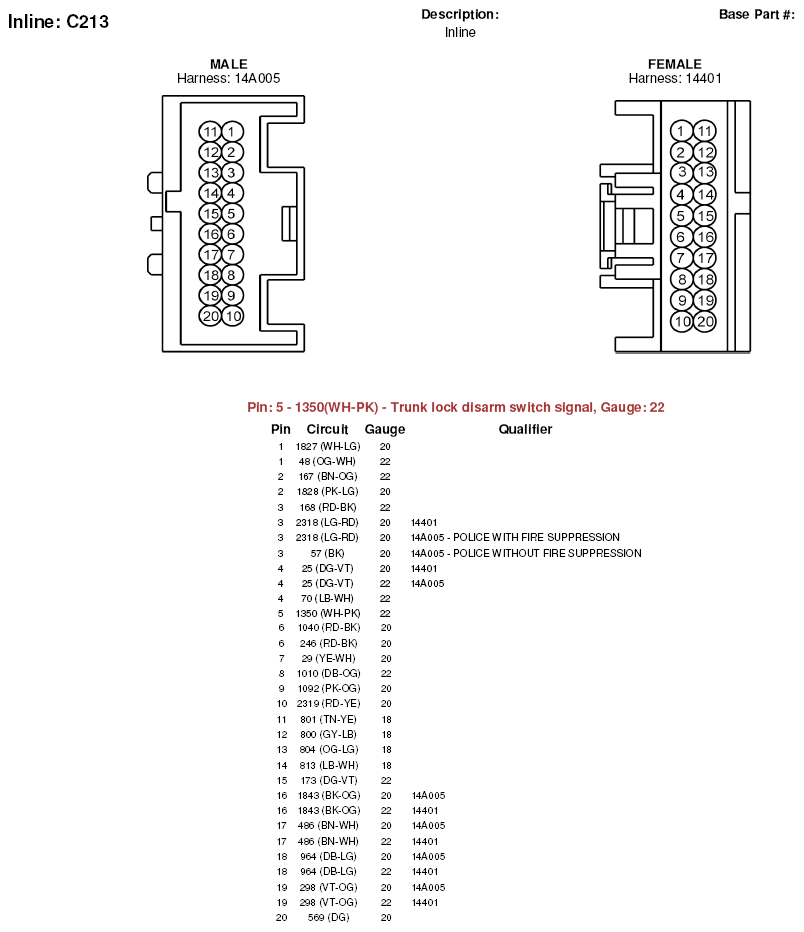

Fig 8: Inline Connector End View (C213)

G05179108

Courtesy of FORD MOTOR CO.

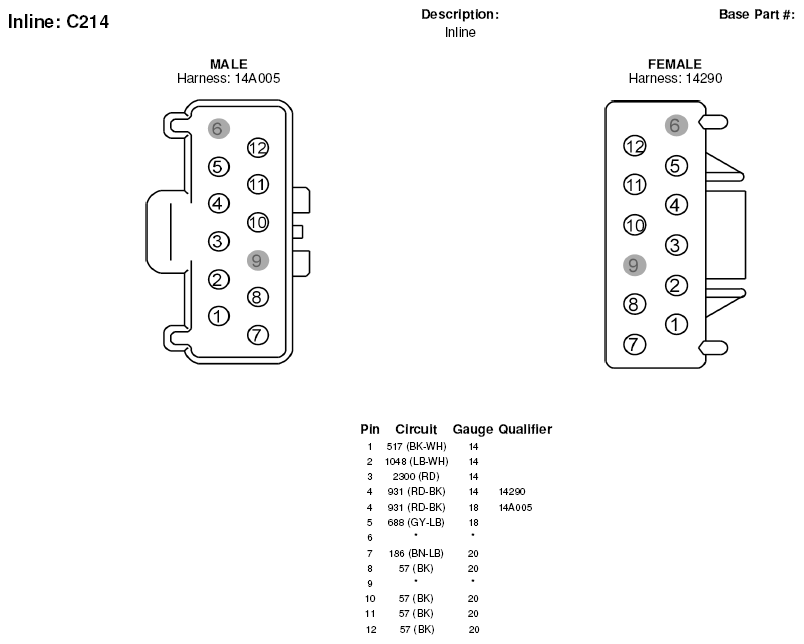

Fig 9: Inline Connector End View (C214)

G05179109

Courtesy of FORD MOTOR CO.

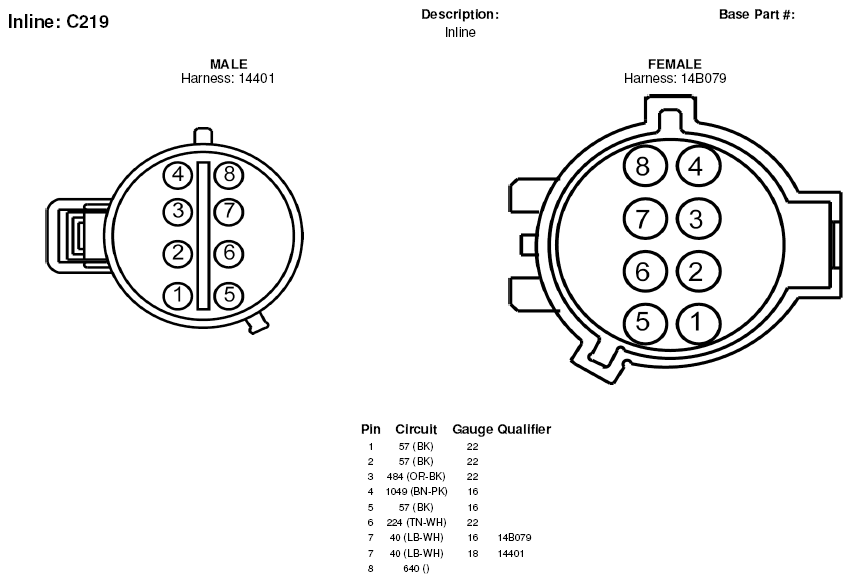

Fig 10: Inline Connector End View (C219)

G05179114

Courtesy of FORD MOTOR CO.

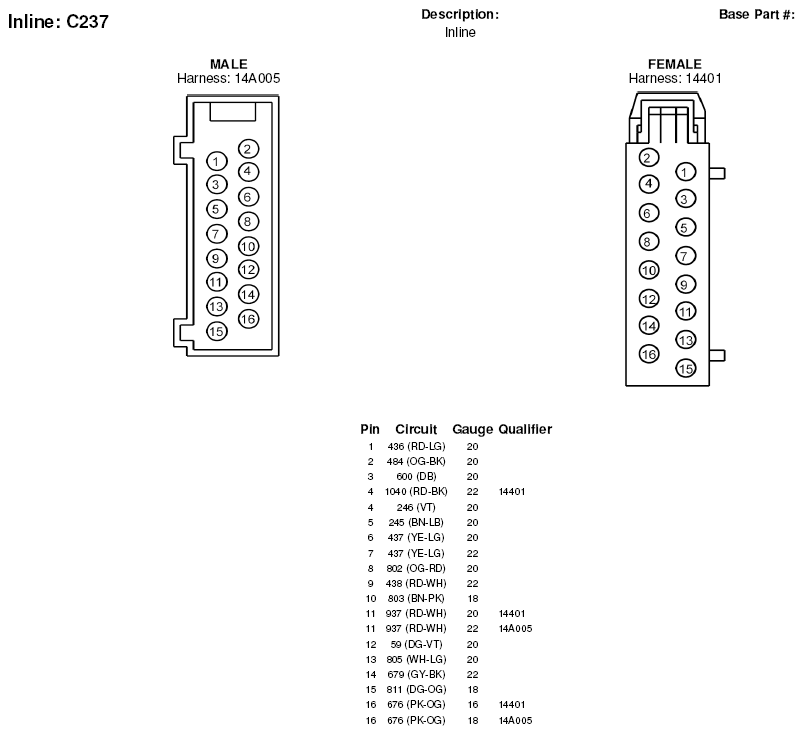

Fig 11: Inline Connector End View (C237)

G05179118

Courtesy of FORD MOTOR CO.

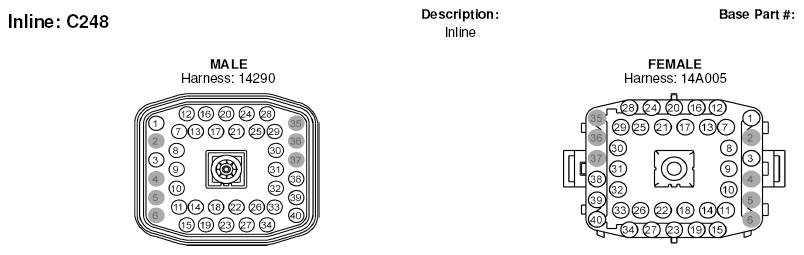

Fig 12: Inline Connector End View (C248) (1 Of 2)

G05179121

Courtesy of FORD MOTOR CO.

Fig 13: Inline Connector End View (C248) (2 Of 2)

G05179122

Courtesy of FORD MOTOR CO.

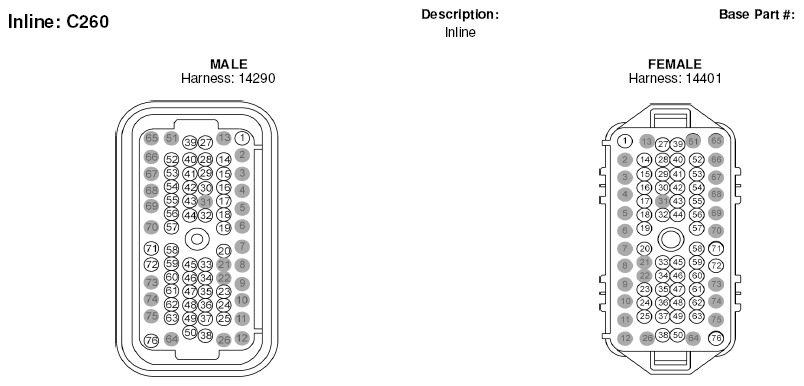

Fig 14: Inline Connector End View (C260) (1 Of 3)

G05179128

Courtesy of FORD MOTOR CO.

Fig 15: Inline Connector End View (C260) (1 Of 3)

G05179129

Courtesy of FORD MOTOR CO.

Fig 16: Inline Connector End View (C260) (3 Of 3)

G05179130

Courtesy of FORD MOTOR CO.

Fig 17: Inline Connector End View (C263)

G05179131

Courtesy of FORD MOTOR CO.

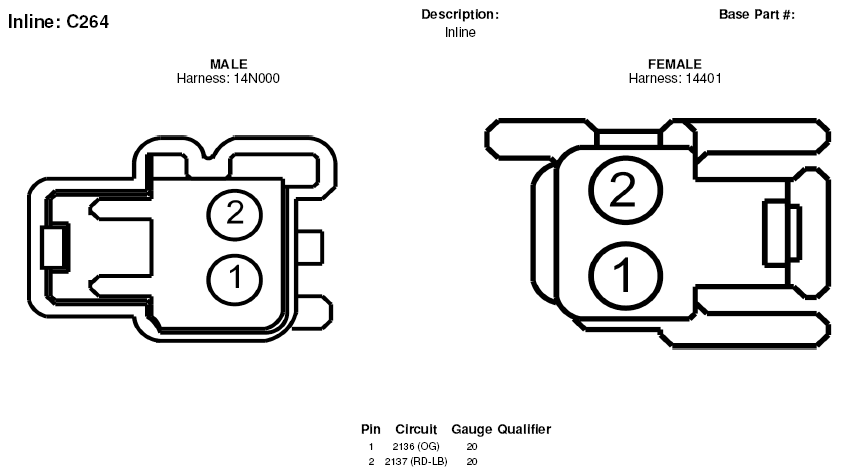

Fig 18: Inline Connector End View (C264)

G05179132

Courtesy of FORD MOTOR CO.

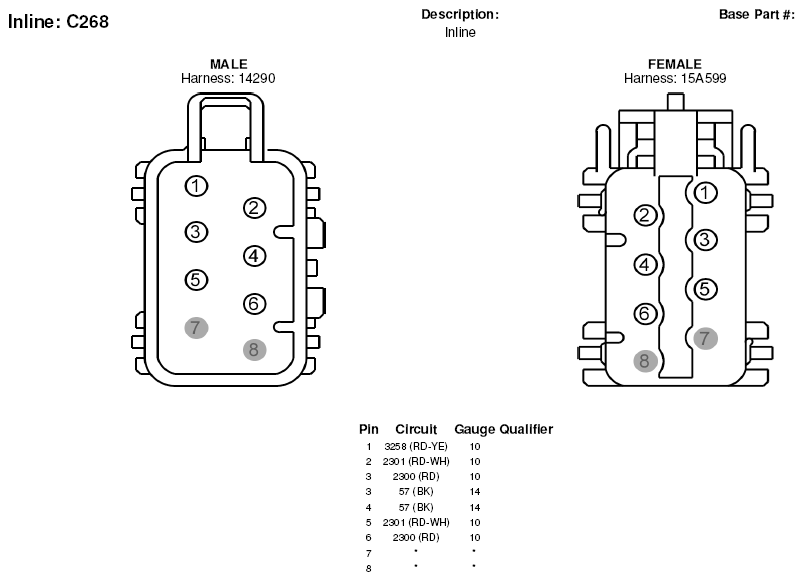

Fig 19: Inline Connector End View (C268)

G05179133

Courtesy of FORD MOTOR CO.

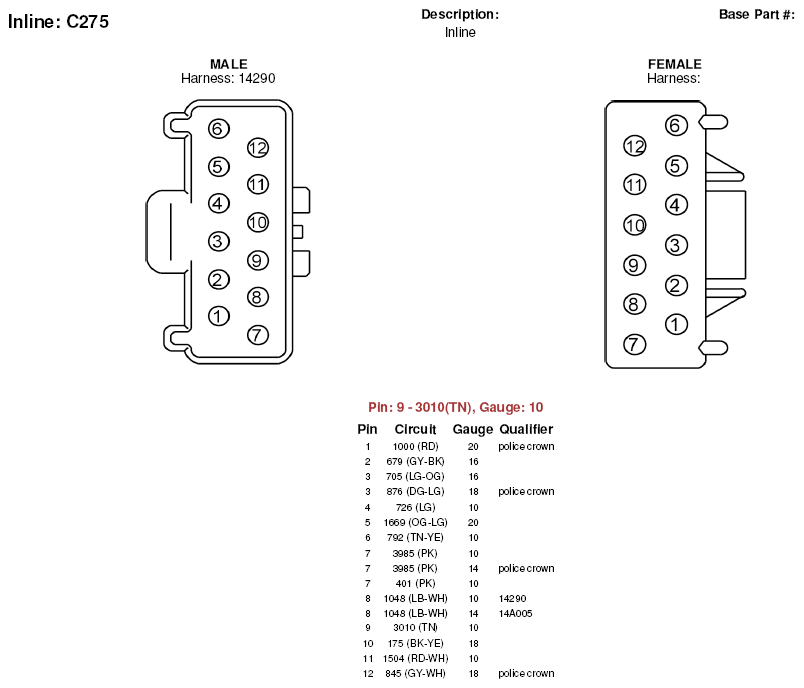

Fig 20: Inline Connector End View (C275)

G05179134

Courtesy of FORD MOTOR CO.

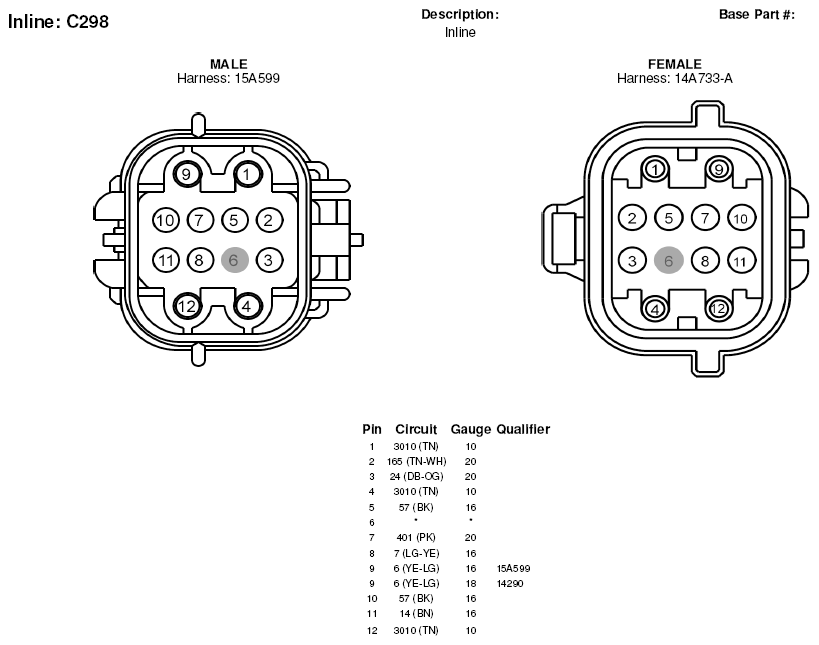

Fig 21: Inline Connector End View (C298)

G05179147

Courtesy of FORD MOTOR CO.

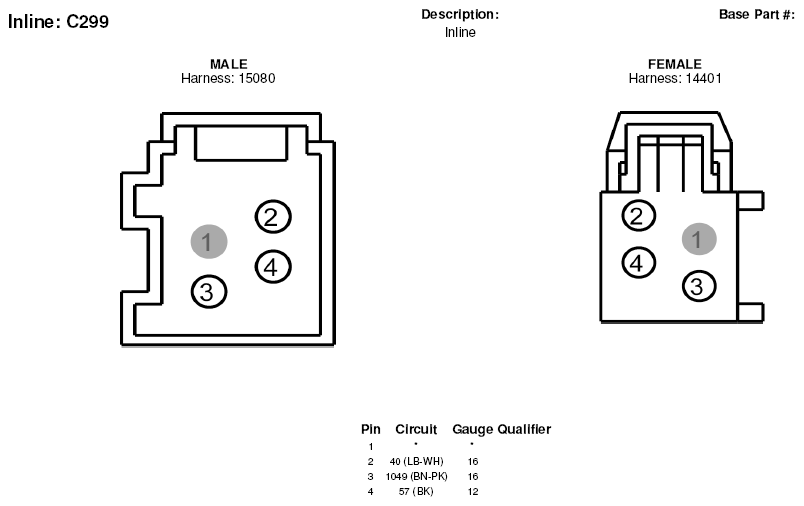

Fig 22: Inline Connector End View (C299)

G05179148

Courtesy of FORD MOTOR CO.

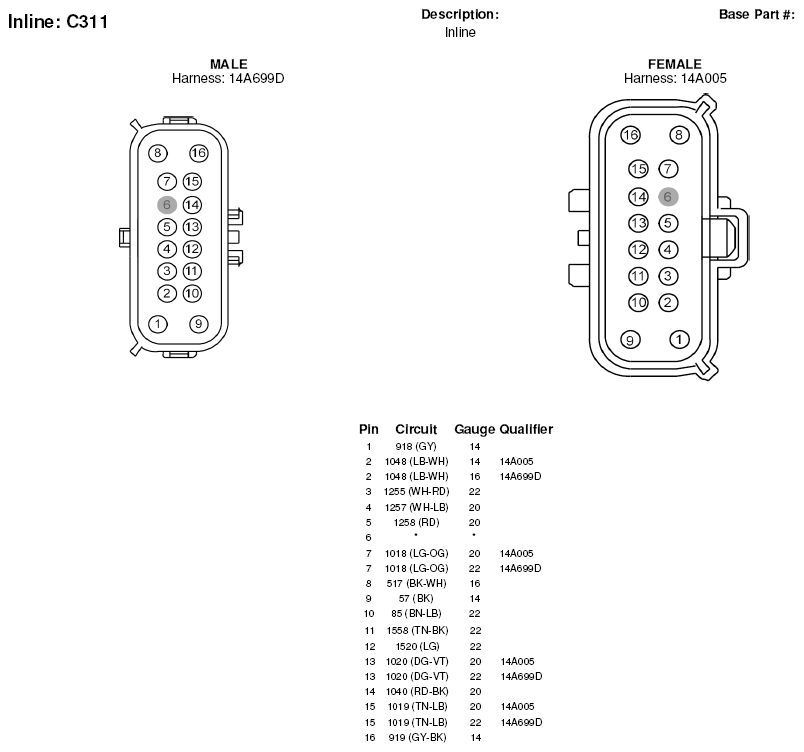

Fig 23: Inline Connector End View (C311)

G05179154

Courtesy of FORD MOTOR CO.

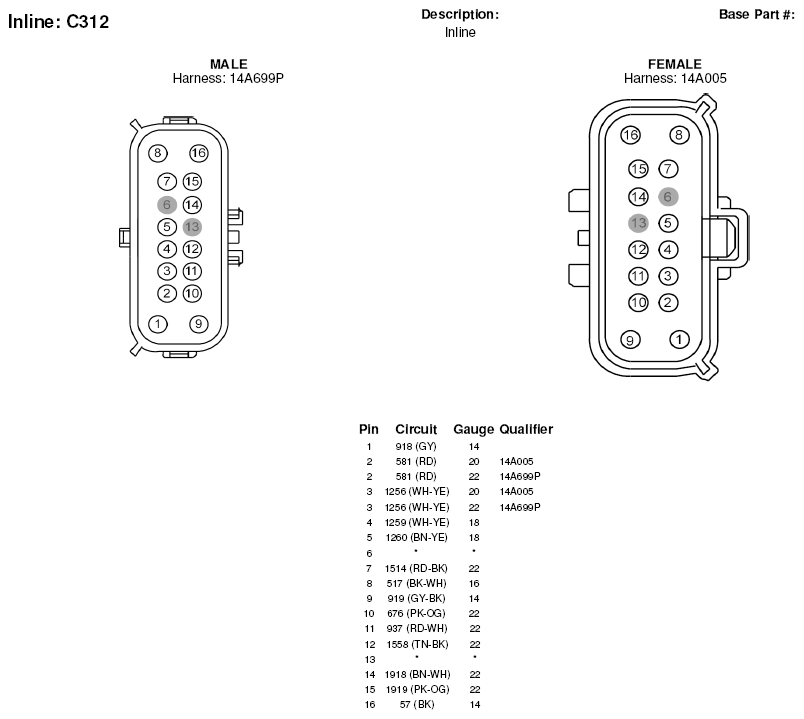

Fig 24: Inline Connector End View (C312)

G05179155

Courtesy of FORD MOTOR CO.

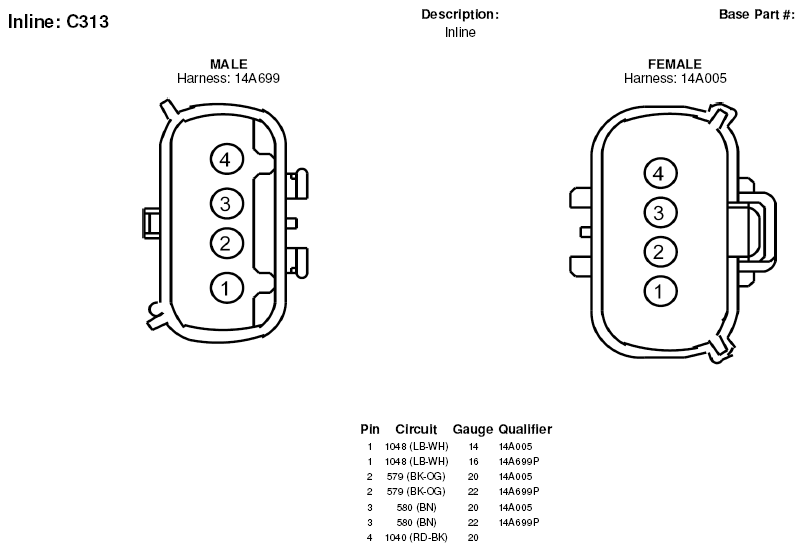

Fig 25: Inline Connector End View (C313)

G05179156

Courtesy of FORD MOTOR CO.

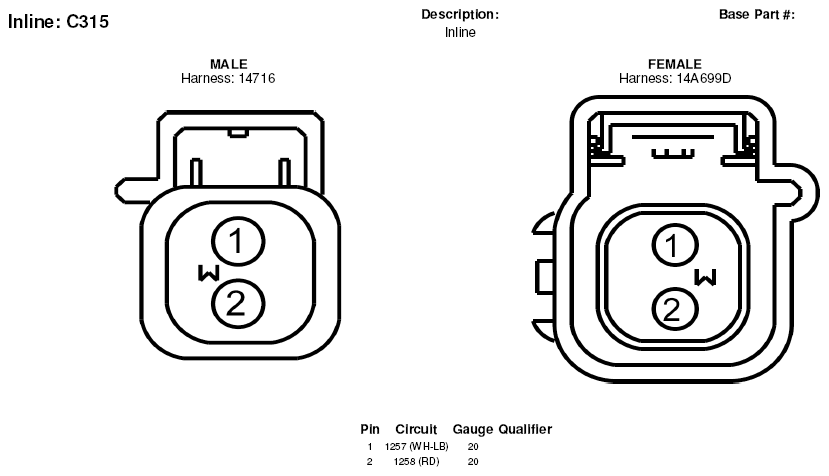

Fig 26: Inline Connector End View (C315)

G05179157

Courtesy of FORD MOTOR CO.

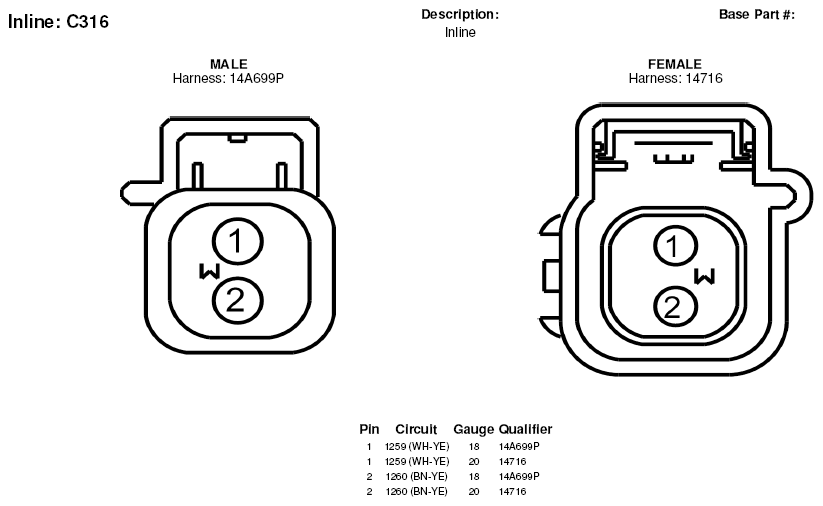

Fig 27: Inline Connector End View (C316)

G05179158

Courtesy of FORD MOTOR CO.

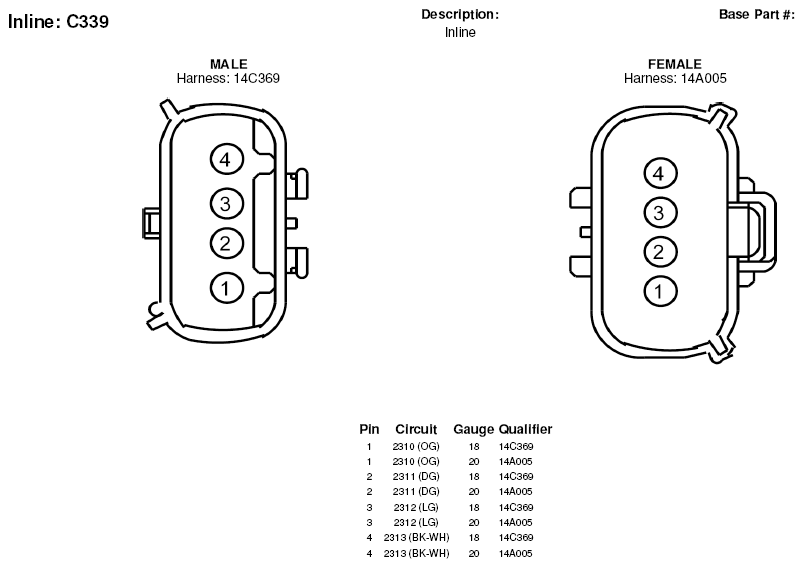

Fig 28: Inline Connector End View (C339)

G05179166

Courtesy of FORD MOTOR CO.

Fig 29: Inline Connector End View (C340)

G05179167

Courtesy of FORD MOTOR CO.

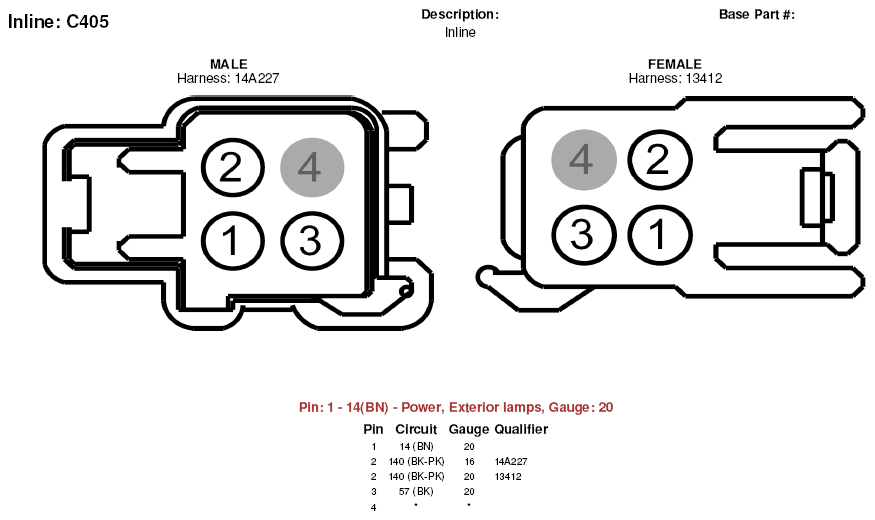

Fig 30: Inline Connector End View (C405)

G05179179

Courtesy of FORD MOTOR CO.

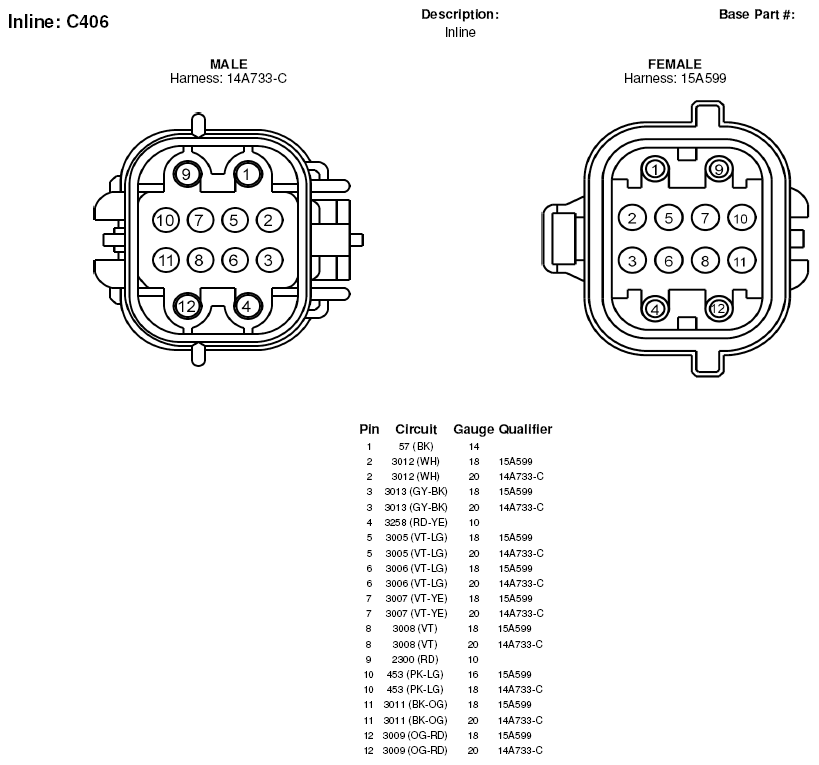

Fig 31: Inline Connector End View (C406)

G05179180

Courtesy of FORD MOTOR CO.

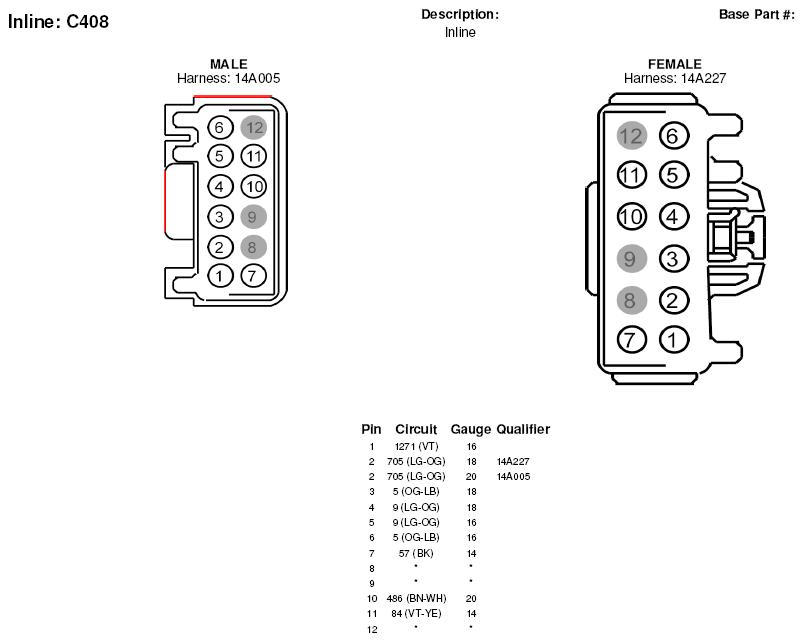

Fig 32: Inline Connector End View (C408)

G05179181

Courtesy of FORD MOTOR CO.

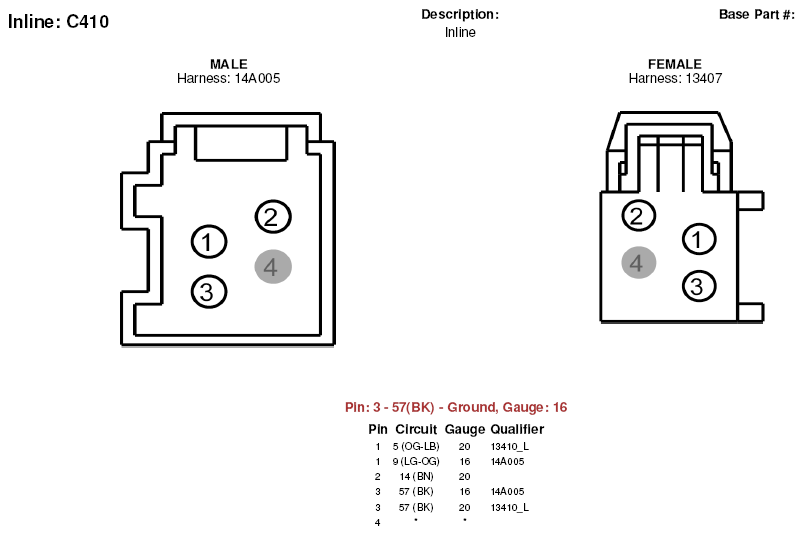

Fig 33: Inline Connector End View (C410)

G05179182

Courtesy of FORD MOTOR CO.

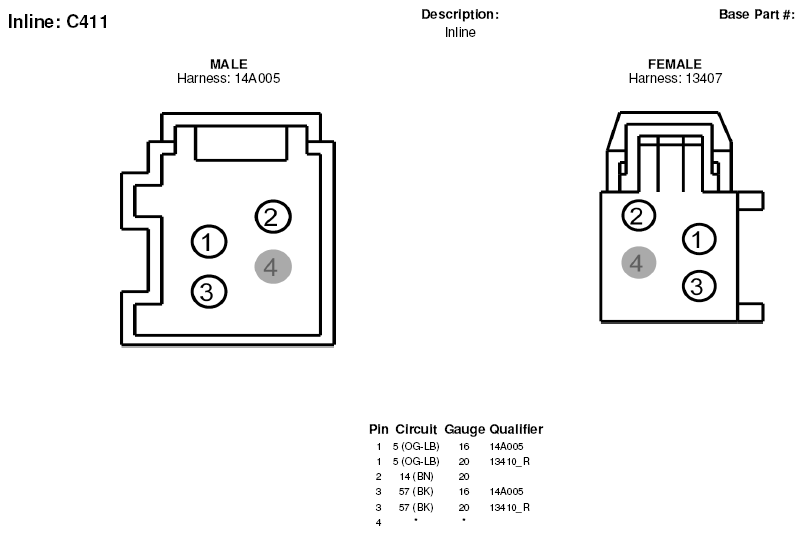

Fig 34: Inline Connector End View (C411)

G05179183

Courtesy of FORD MOTOR CO.

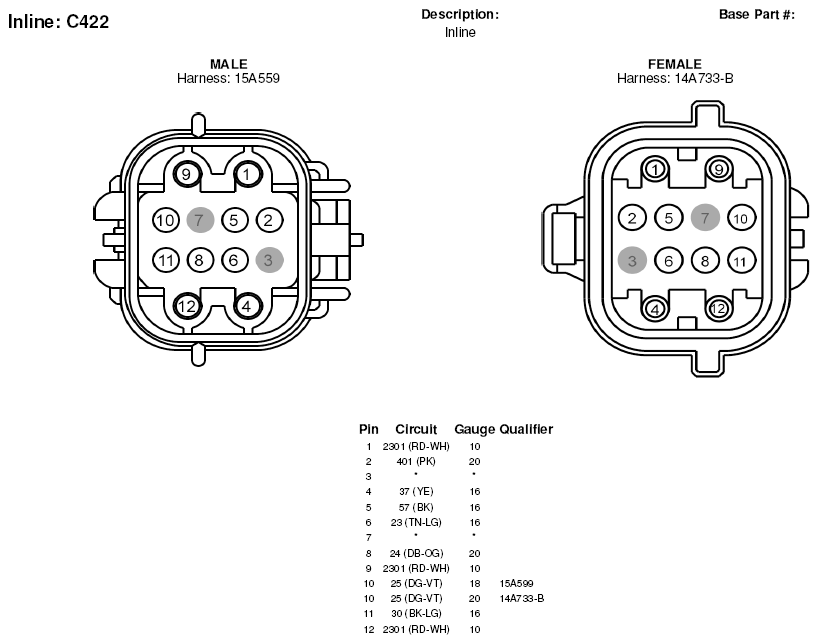

Fig 35: Inline Connector End View (C422)

G05179184

Courtesy of FORD MOTOR CO.

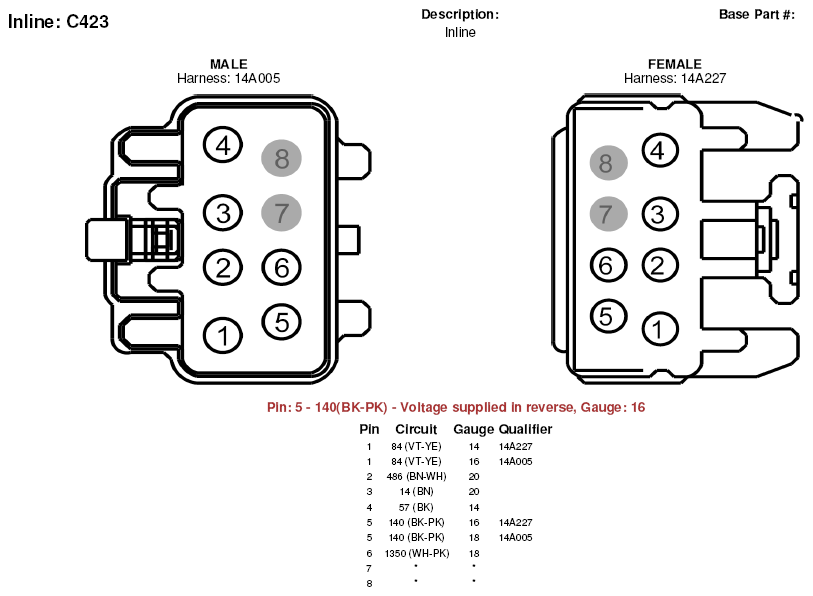

Fig 36: Inline Connector End View (C423)

G05179185

Courtesy of FORD MOTOR CO.

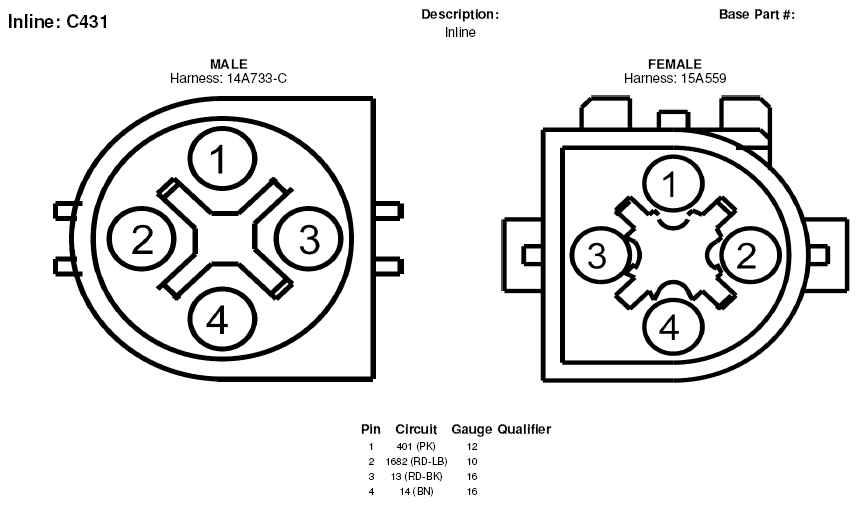

Fig 37: Inline Connector End View (C431)

G05179189

Courtesy of FORD MOTOR CO.

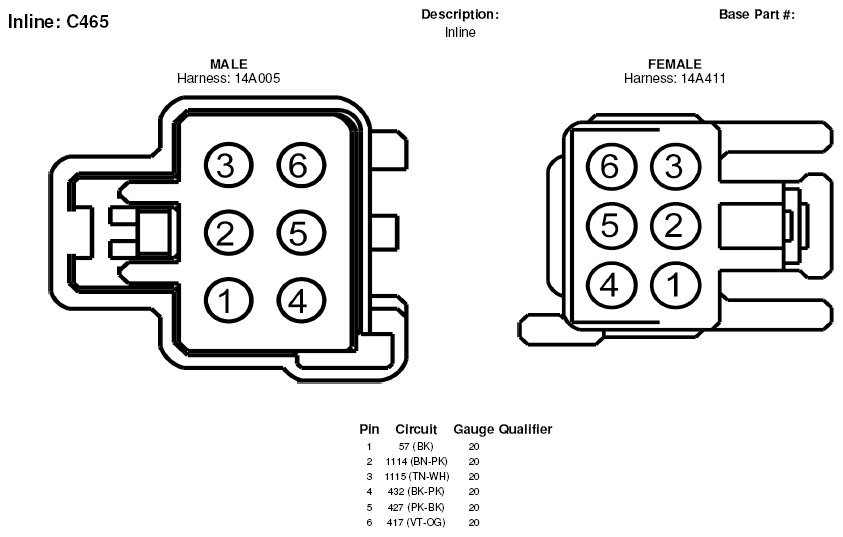

Fig 38: Inline Connector End View (C465)

G05179195

Courtesy of FORD MOTOR CO.

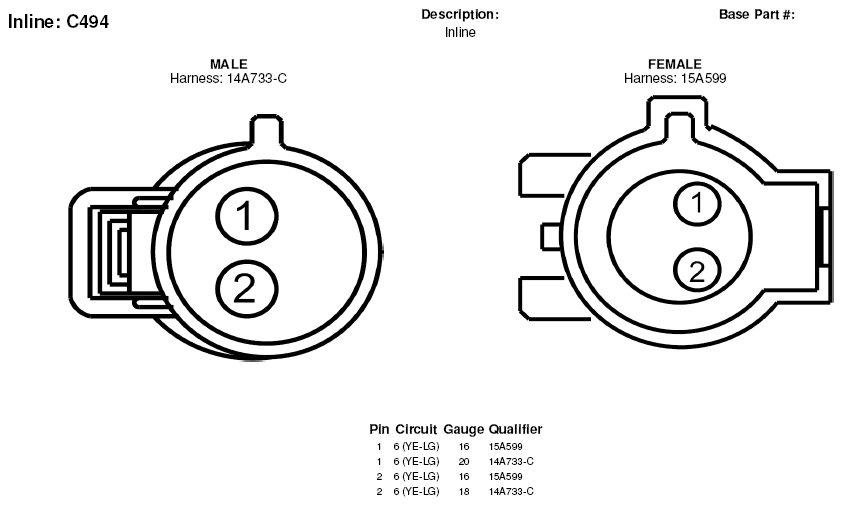

Fig 39: Inline Connector End View (C494)

G05179201

Courtesy of FORD MOTOR CO.

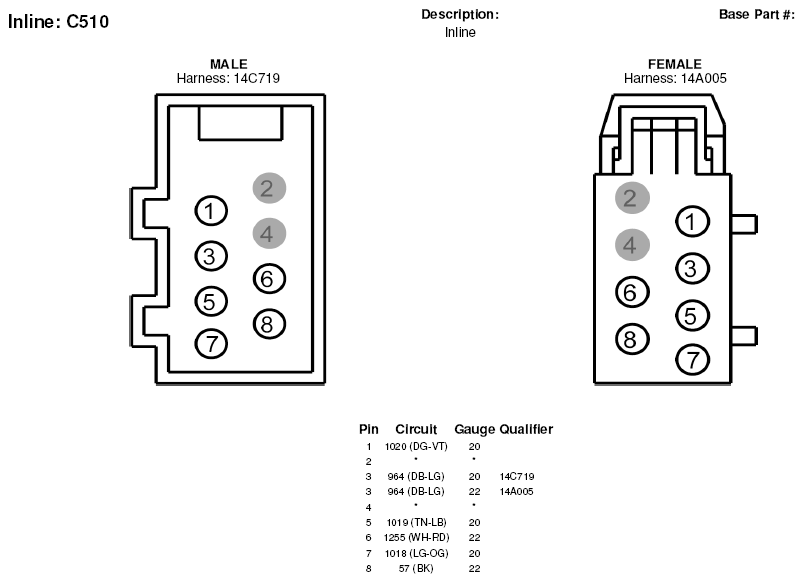

Fig 40: Inline Connector End View (C510)

G05179208

Courtesy of FORD MOTOR CO.

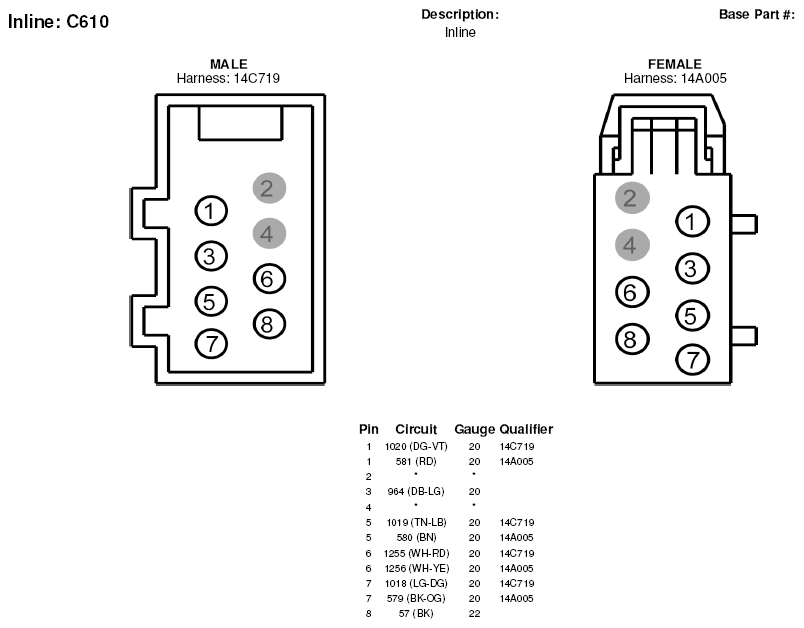

Fig 41: Inline Connector End View (C610)

G05179226

Courtesy of FORD MOTOR CO.

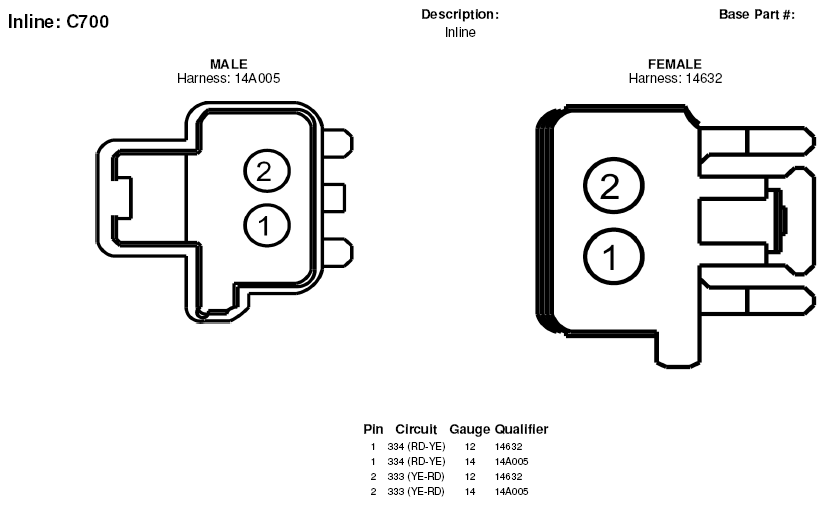

Fig 42: Inline Connector End View (C700)

G05179232

Courtesy of FORD MOTOR CO.

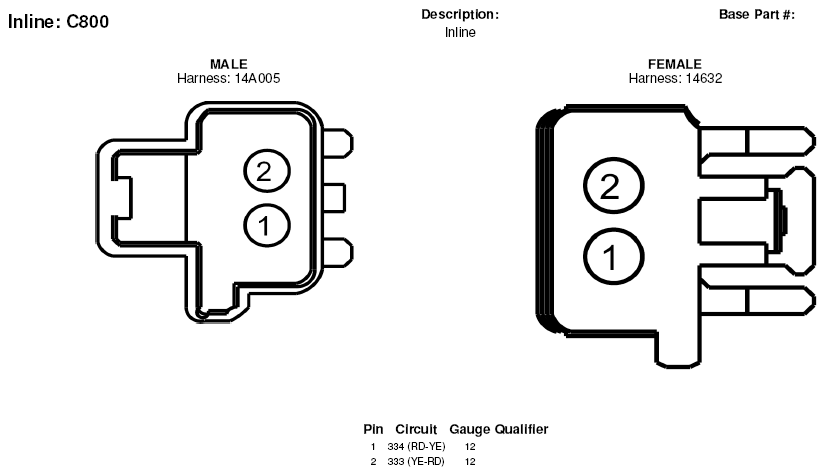

Fig 43: Inline Connector End View (C800)

G05179238

Courtesy of FORD MOTOR CO.

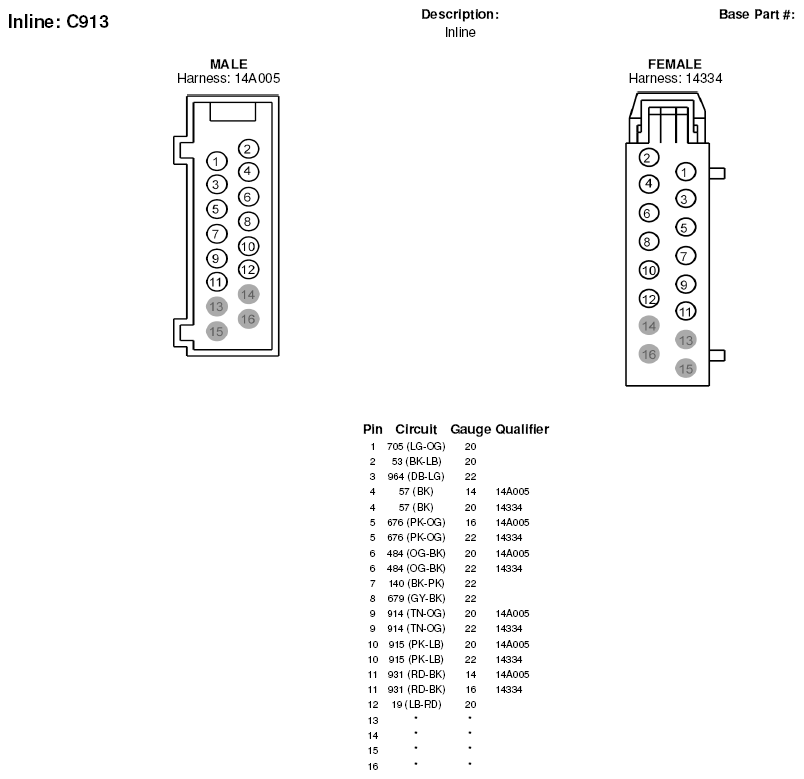

Fig 44: Inline Connector End View (C913)

G05179247

Courtesy of FORD MOTOR CO.

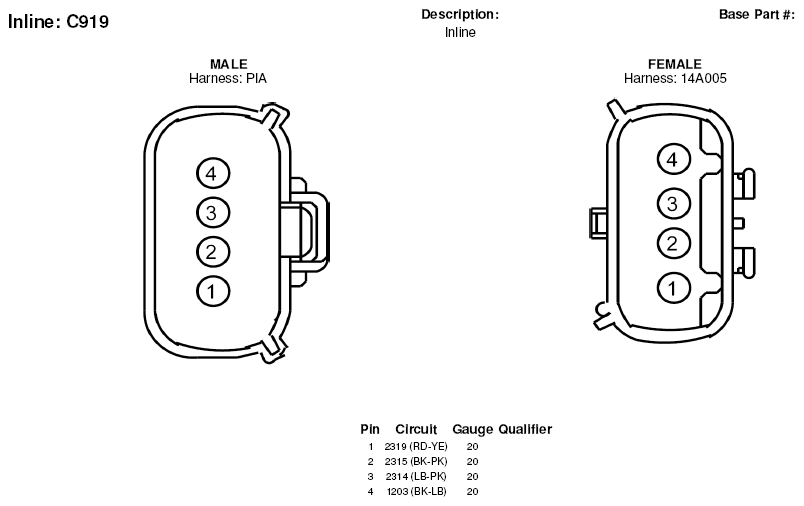

Fig 45: Inline Connector End View (C919)

G05179248

Courtesy of FORD MOTOR CO.

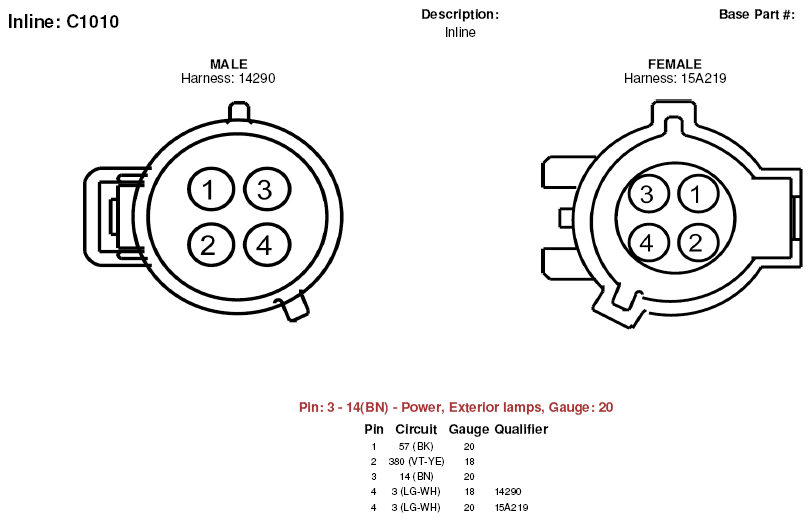

Fig 46: Inline Connector End View (C1010)

G05179255

Courtesy of FORD MOTOR CO.

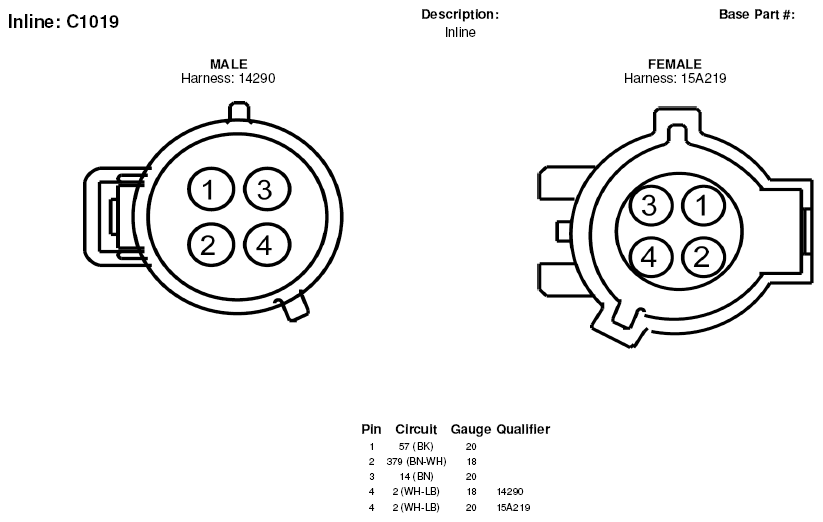

Fig 47: Inline Connector End View (C1019)

G05179256

Courtesy of FORD MOTOR CO.

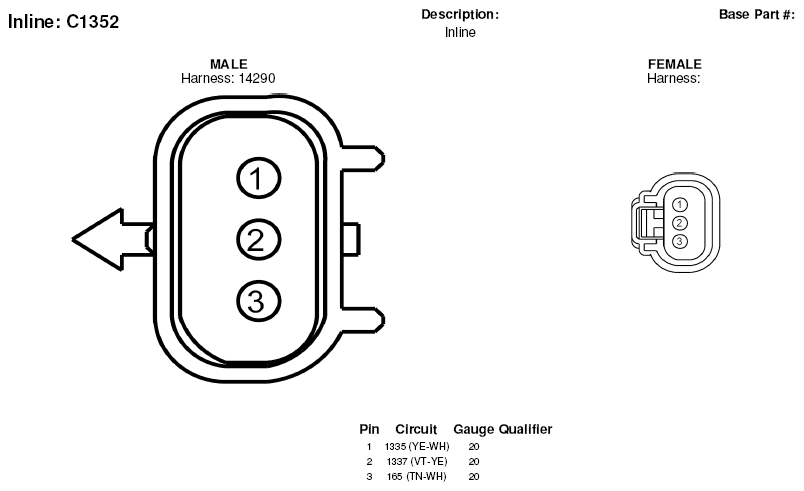

Fig 48: Inline Connector End View (C1352)

G05179285

Courtesy of FORD MOTOR CO.

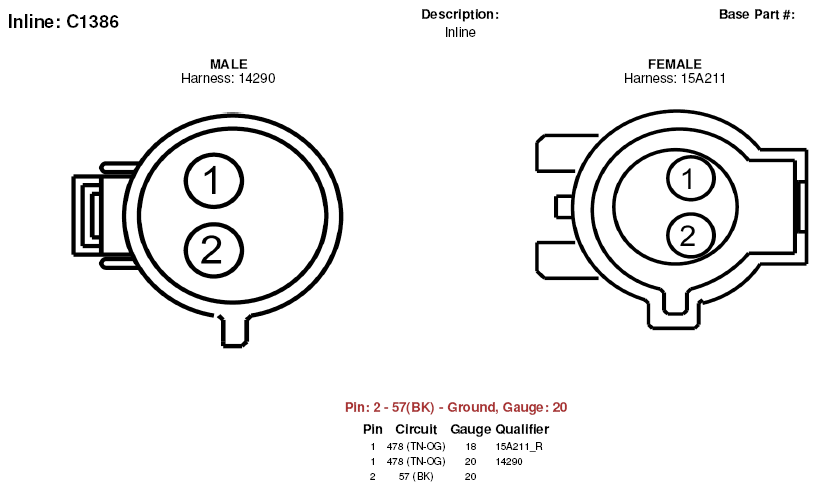

Fig 49: Inline Connector End View (C1386)

G05179288

Courtesy of FORD MOTOR CO.

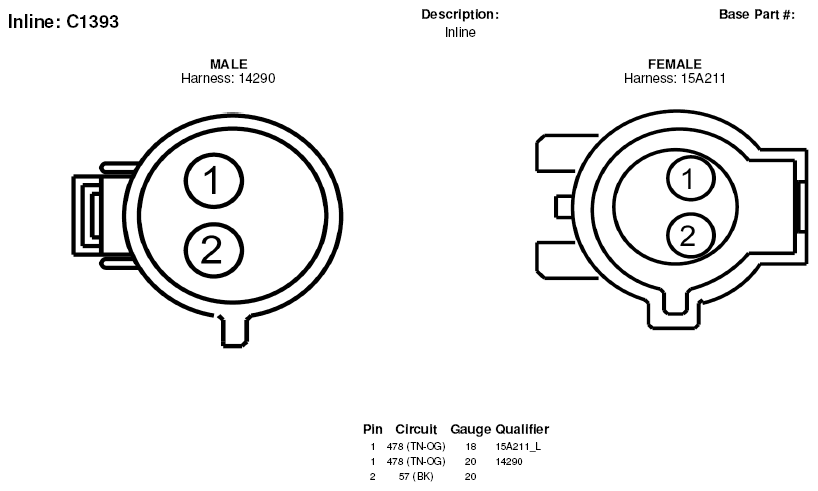

Fig 50: Inline Connector End View (C1393)

G05179289

Courtesy of FORD MOTOR CO.
