HVAC Module EATC Connectors

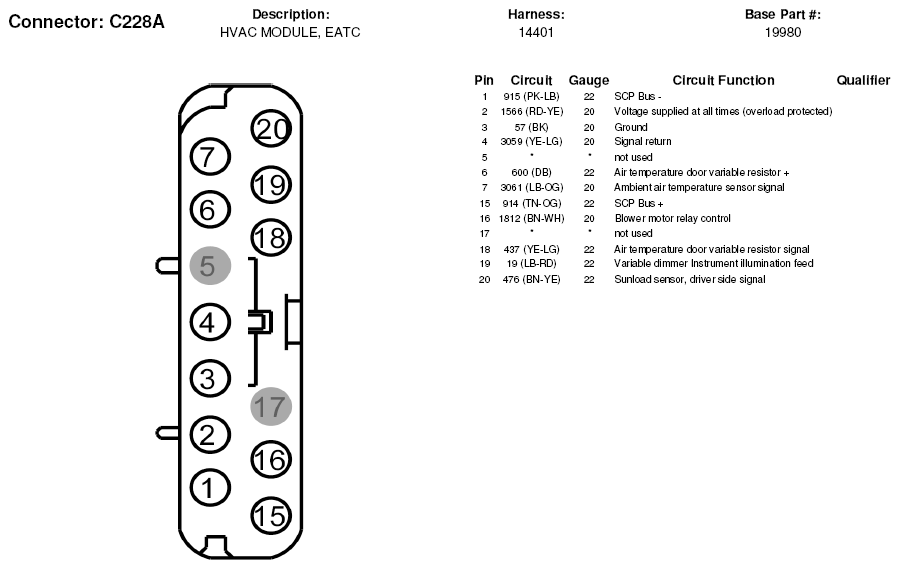

Fig 1: HVAC Module EATC Connector End View (C228A)

G05179115

Courtesy of FORD MOTOR CO.

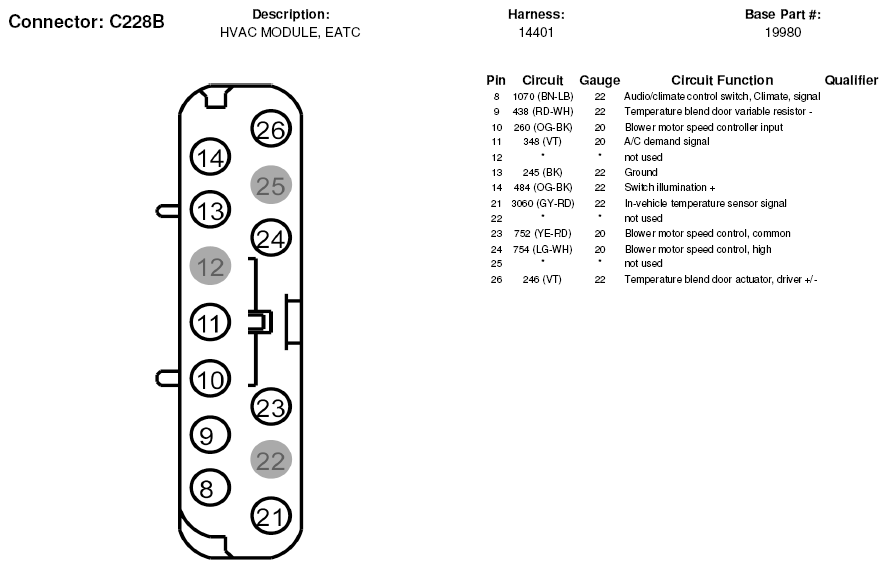

Fig 2: HVAC Module EATC Connector End View (C228B)

G05179116

Courtesy of FORD MOTOR CO.
