Generator Connectors

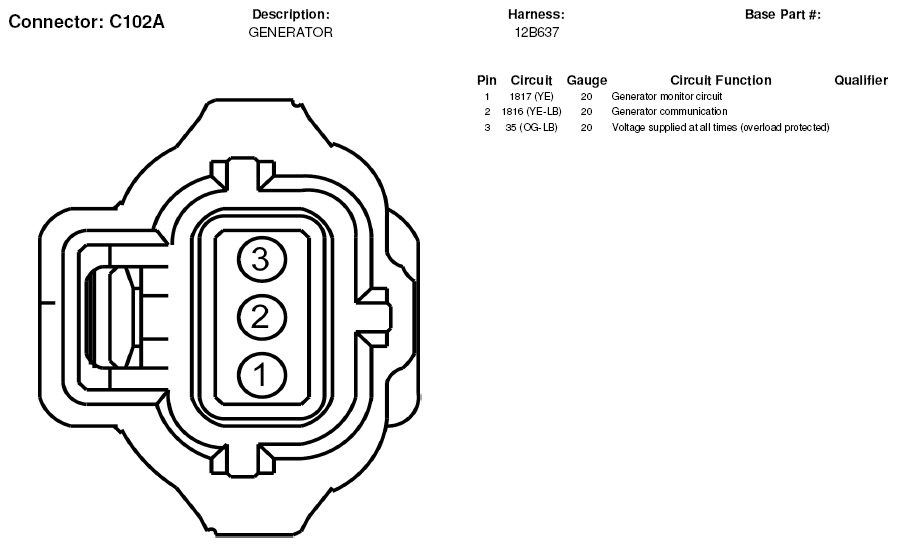

Fig 1: Generator Connector End View (C102A)
Courtesy of FORD MOTOR CO.
Fig 2: Generator Connector End View (C102B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
