Front Impact Severity Sensor Connectors

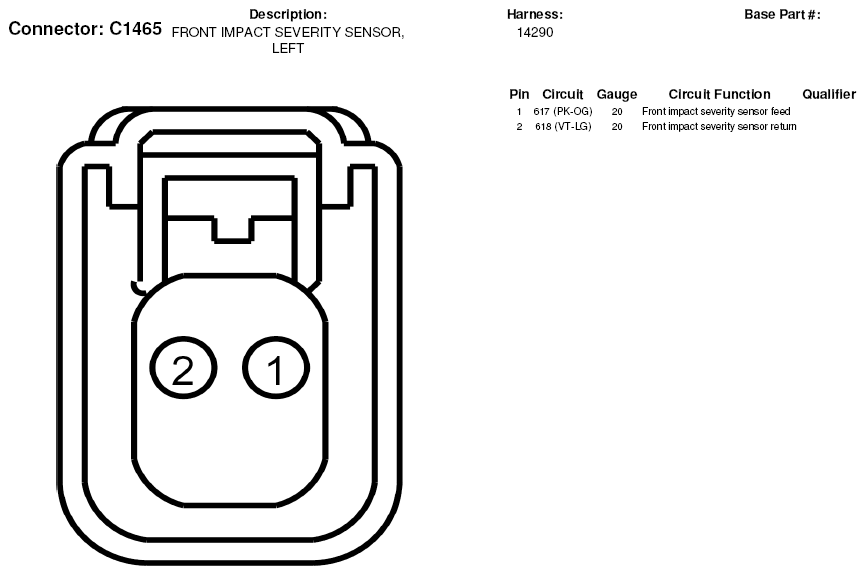

Fig 1: Front Impact Severity Sensor Connector End View (C1465)
G05179291Courtesy of FORD MOTOR CO.

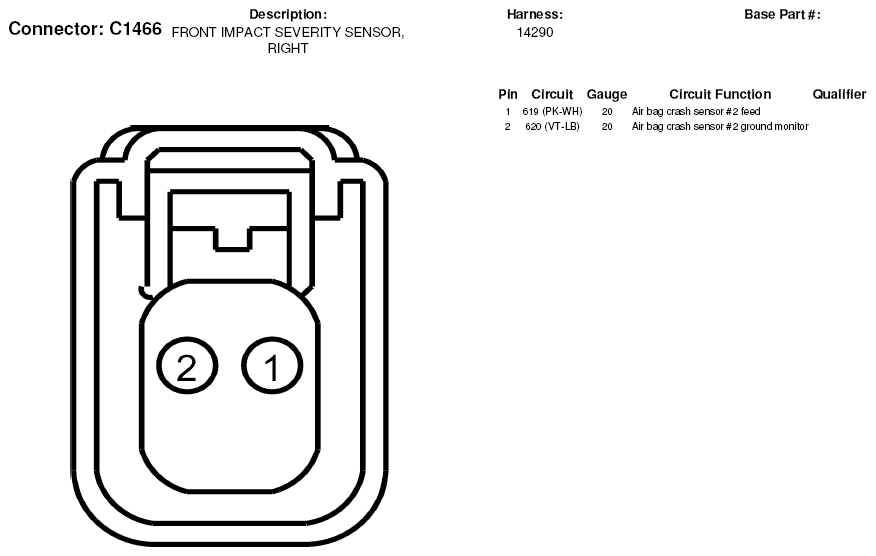

Fig 2: Front Impact Severity Sensor Connector End View (C1466)
G05179292Courtesy of FORD MOTOR CO.
