Engine Compartment Perimeter Disarm Connector

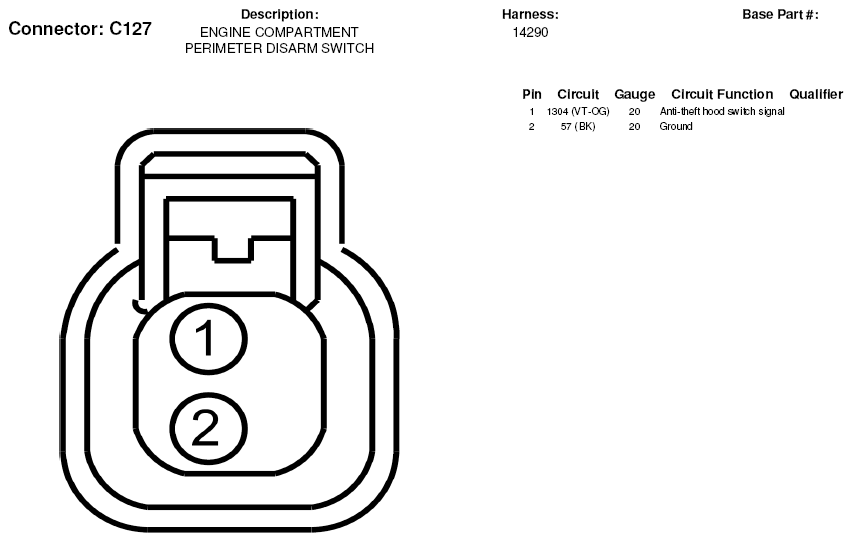

Fig 1: Engine Compartment Perimeter Disarm Connector End View (C127)

G05179061

Courtesy of FORD MOTOR CO.
