Electronic Throttle Control Motor Connector

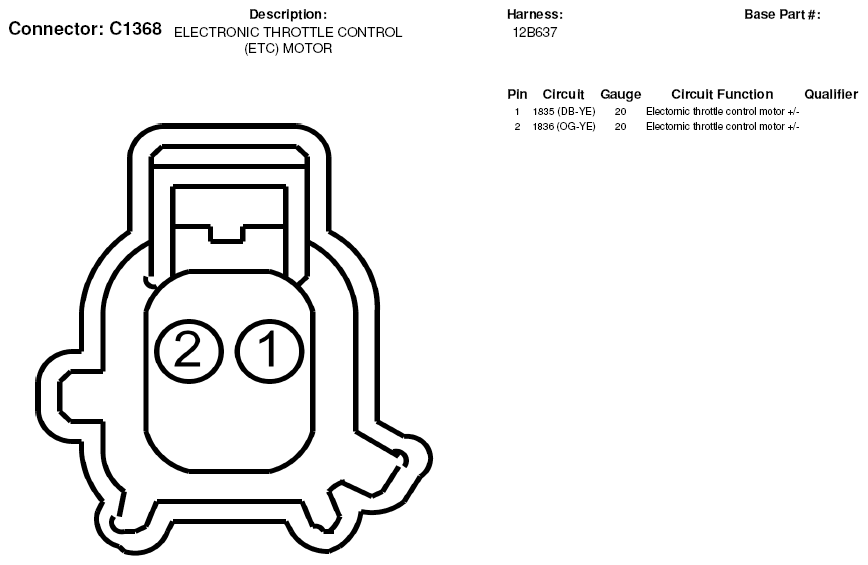

Fig 1: Electronic Throttle Control Motor Connector End View (C1368)

G05179287

Courtesy of FORD MOTOR CO.
