Cylinderhead Temperature Sensor Connector

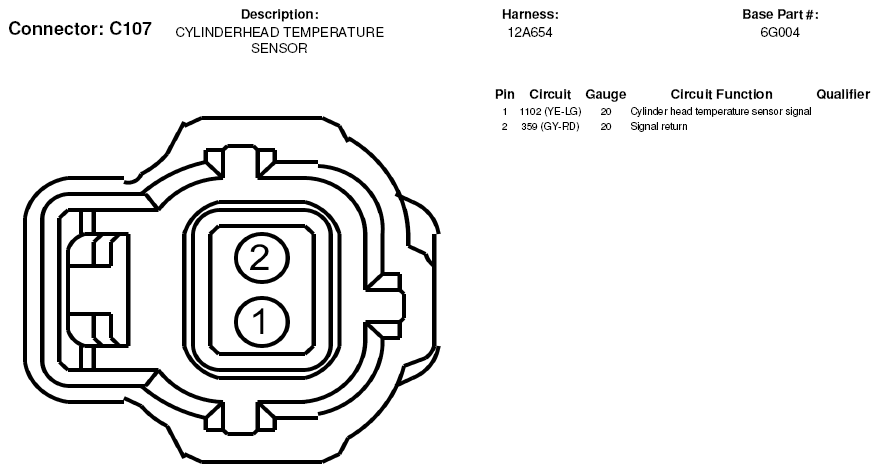

Fig 1: Cylinderhead Temperature Sensor Connector End View (C107)

G05179047

Courtesy of FORD MOTOR CO.
