Audio Unit Connectors

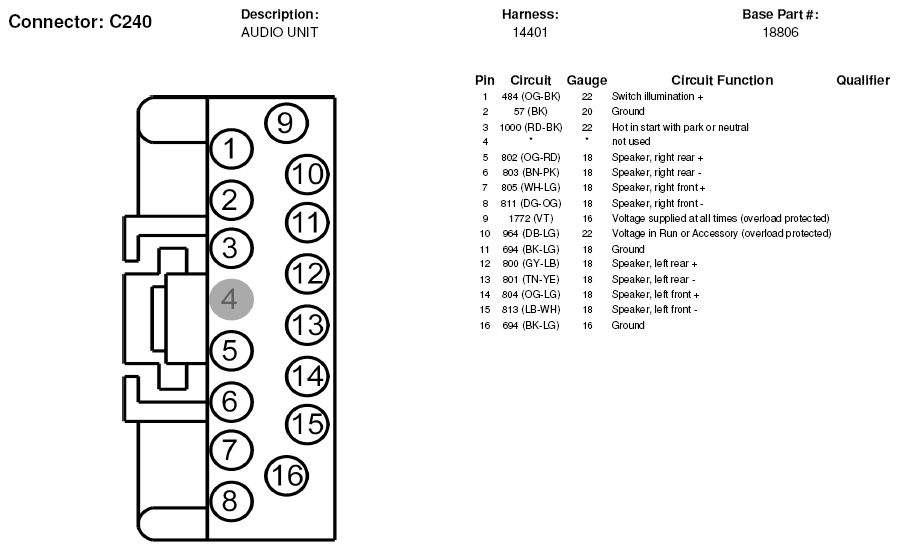

Fig 1: Audio Unit Connector End View (C240)
G05179119Courtesy of FORD MOTOR CO.

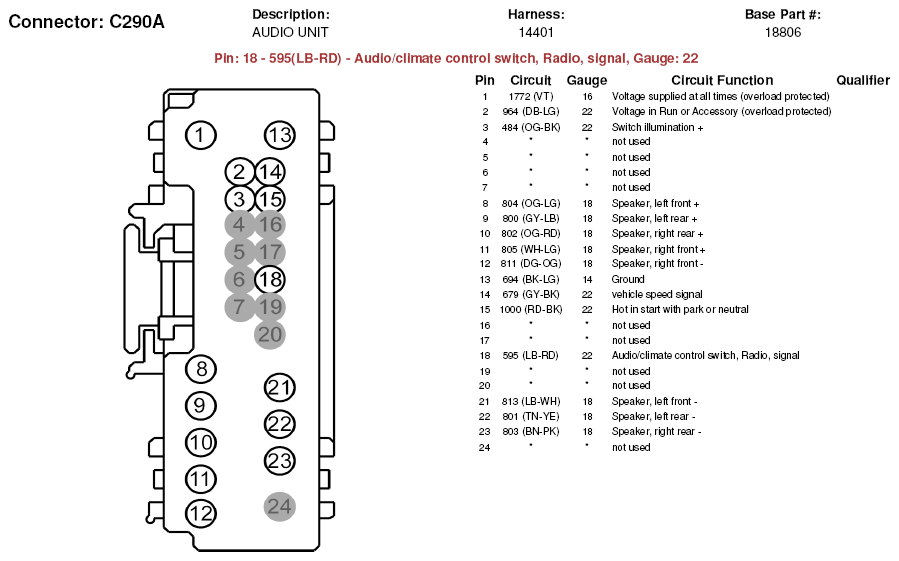

Fig 2: Audio Unit Connector End View (C290A)
G05179141Courtesy of FORD MOTOR CO.

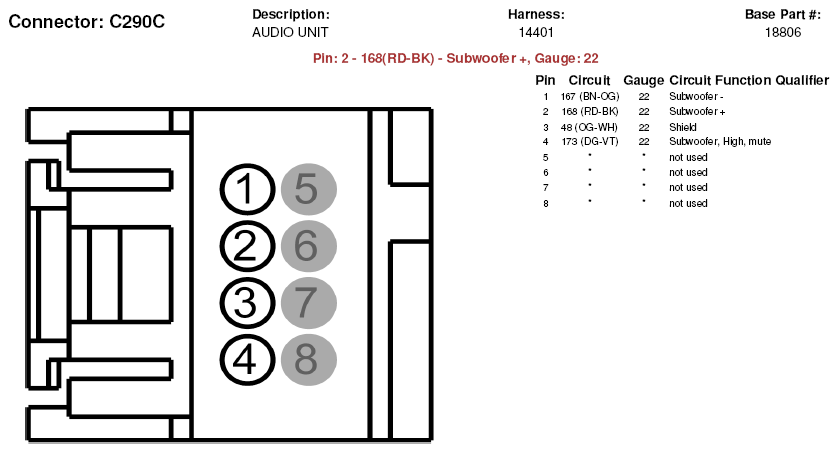

Fig 3: Audio Unit Connector End View (C290C)
G05179142Courtesy of FORD MOTOR CO.
