Auxiliary Transmission Fluid Cooler: Notes

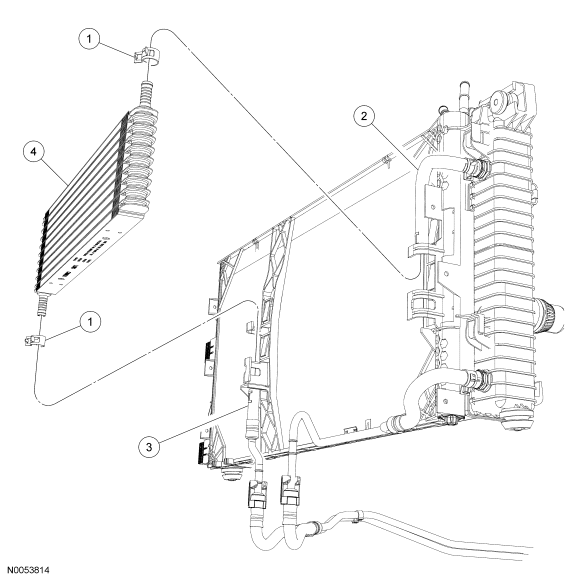

Fig 1: Exploded View Of Auxiliary Transmission Fluid Cooler With Torque Specifications
GF0022818Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8287 Auxiliary transmission fluid cooler hose clamp
2 7F113 Auxiliary transmission fluid cooler inlet hose
3 7F112 Auxiliary transmission fluid cooler outlet hose
4 7A095 Auxiliary transmission fluid cooler
