Console - Front, Floor, Expedition: Notes

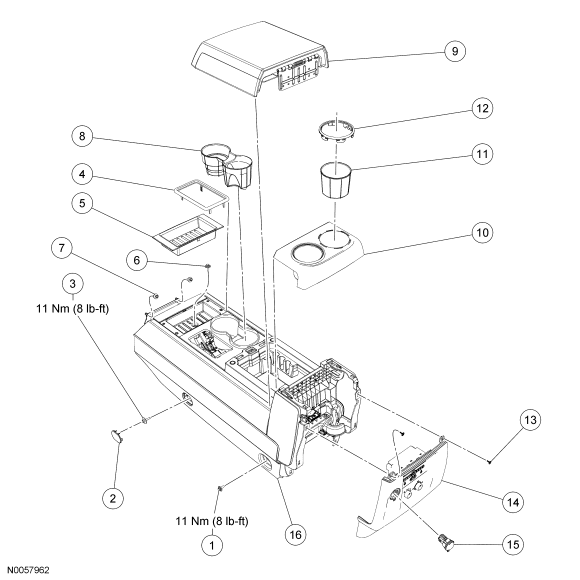

Fig 1: Exploded View Of Front Floor Console With Torque Specifications (Expedition)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W710806	Front floor console rear bolt (2 required)
2	-	Front floor console bolt cover
3	W710806	Front floor console front bolt (2 required)
4	-	Shifter trim ring
5	-	Front floor console tray mat
6	W707607	Front floor console screw
7	W710879	Front floor console front screw (2 required)
8	-	Front cup holder insert
9	06024	Front floor console storage compartment door
10	-	Rear cup holder
11	-	Rear cup holder insert
12	-	Rear cup holder trim ring
13	W7008401	Front floor console rear panel screw (2 required)
14	045E24	Front floor console rear panel
15	19N236	Front floor console rear auxiliary power point
16	045A36	Front floor console
