Subwoofer Speaker: Notes

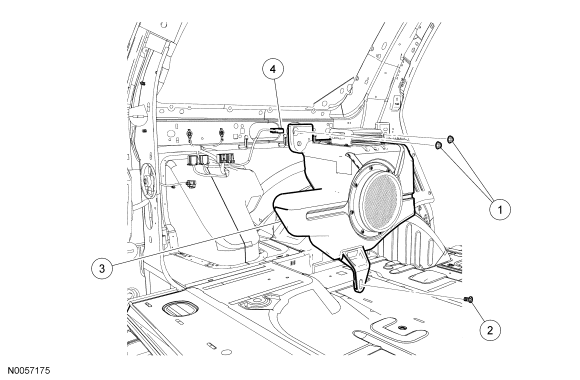

Fig 1: Exploded View Of Subwoofer Speaker
GF0023429Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W704346-S441 Subwoofer speaker nuts (2 required)
2 W712198-S439 Subwoofer speaker bolt
3 18C804 Subwoofer speaker
4 - Subwoofer speaker electrical connector (part of 14A005)
