Speaker Connectors

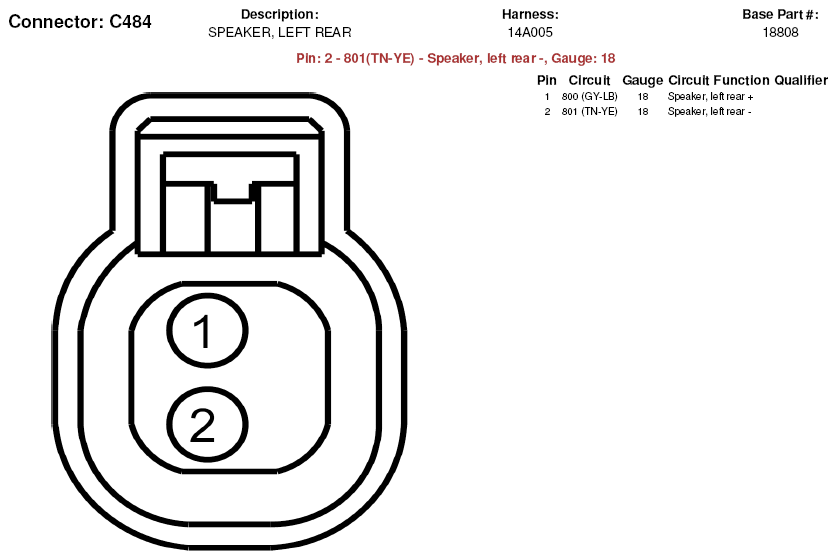

Fig 1: Speaker Connector End View (C484)
G05179198Courtesy of FORD MOTOR CO.

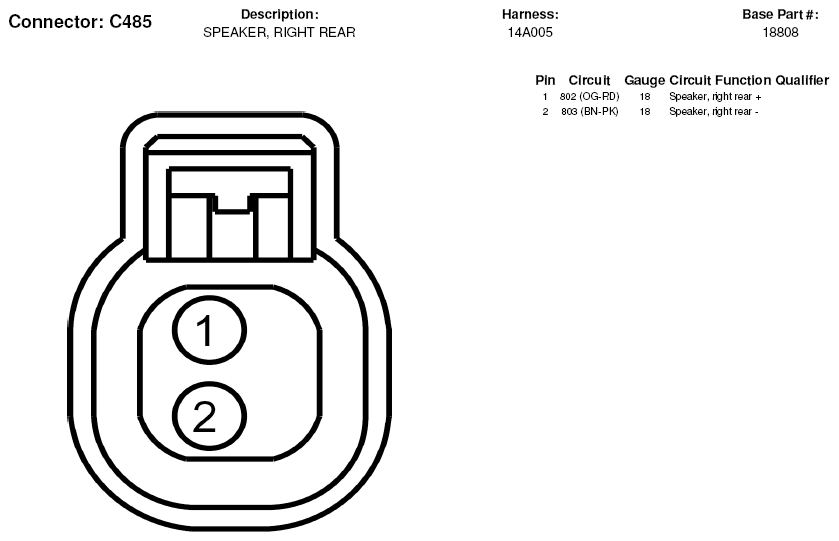

Fig 2: Speaker Connector End View (C485)
G05179199Courtesy of FORD MOTOR CO.

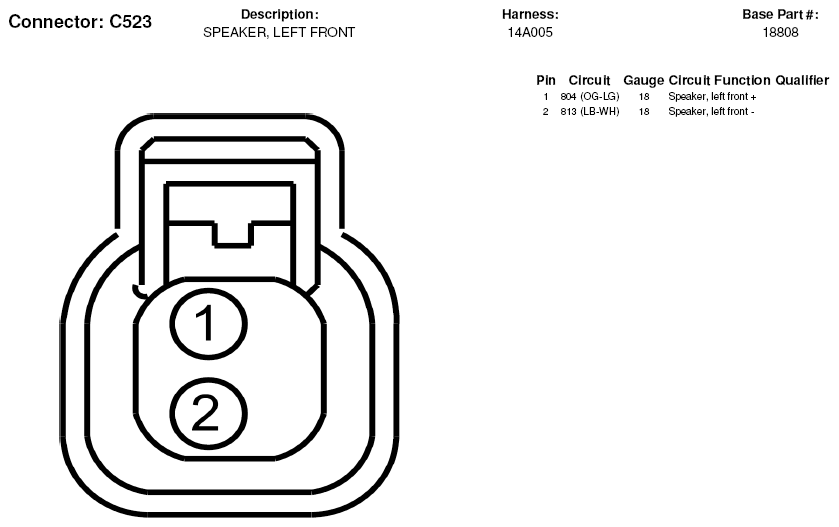

Fig 3: Speaker Connector End View (C523)
G05179211Courtesy of FORD MOTOR CO.

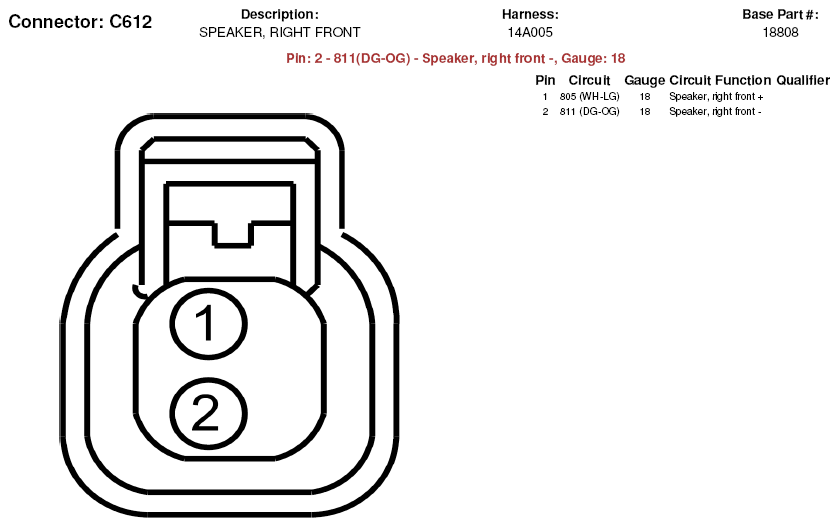

Fig 4: Speaker Connector End View (C612)
G05179227Courtesy of FORD MOTOR CO.
