OEM Connector End Views
>>
Connector Views
>>
Seat Adjust Switch Connectors
Seat Adjust Switch Connectors
Fig 1: Seat Adjust Switch Connector End View (C519)
Courtesy of FORD MOTOR CO.

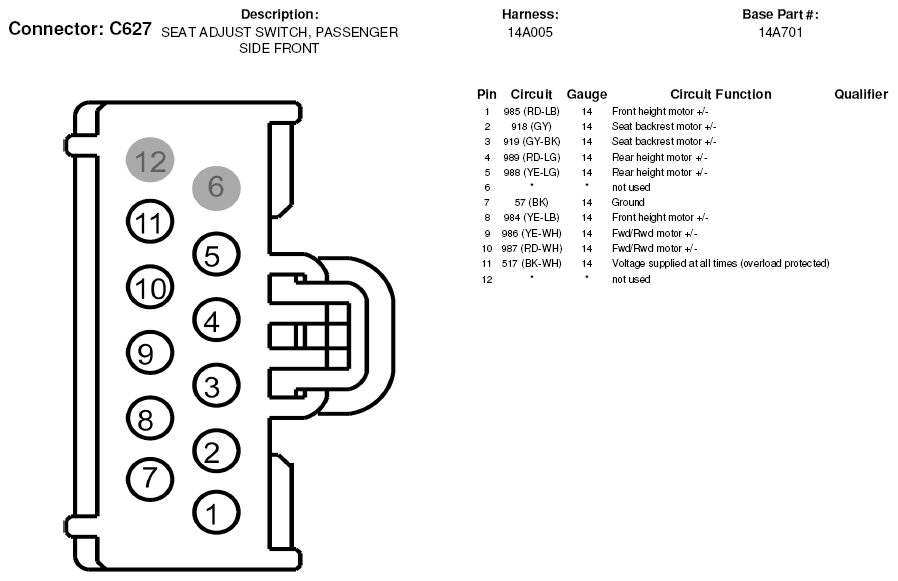

Fig 2: Seat Adjust Switch Connector End View (C627)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
