Safety Belt Sensor Connectors

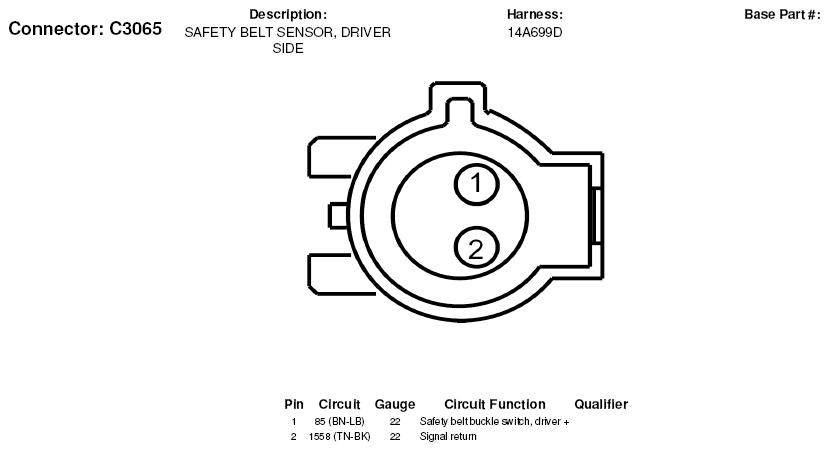

Fig 1: Safety Belt Sensor Connector End View (C3065)
Courtesy of FORD MOTOR CO.

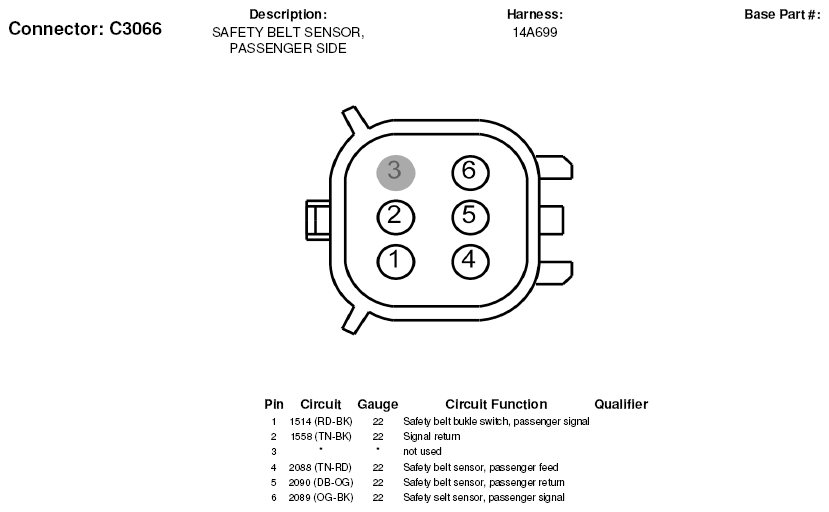

Fig 2: Safety Belt Sensor Connector End View (C3066)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
