Right Rear Strobe Assembly Connector

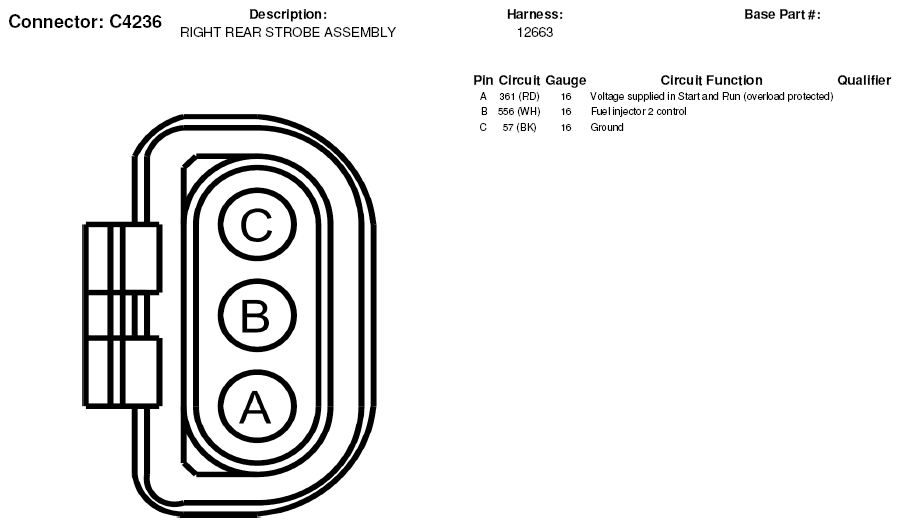

Fig 1: Right Rear Strobe Assembly Connector End View (C4236)

G05179366

Courtesy of FORD MOTOR CO.
