Power Seat Motor Assembly Connectors

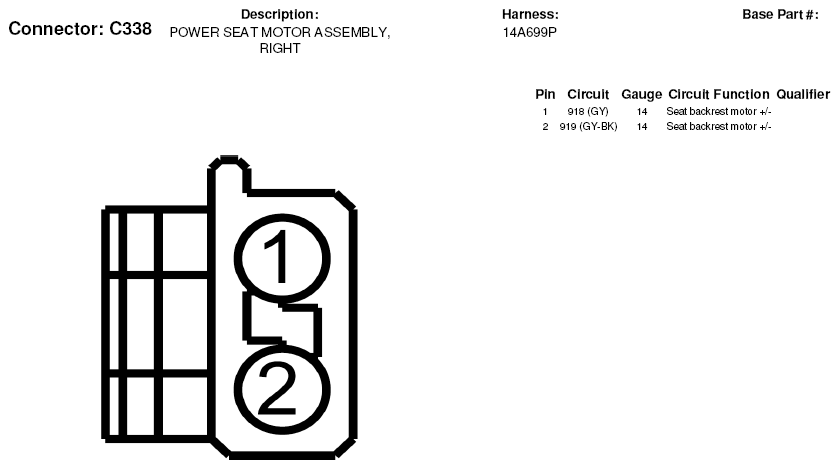

Fig 1: Power Seat Motor Assembly Connector End View (C338)

Courtesy of FORD MOTOR CO.

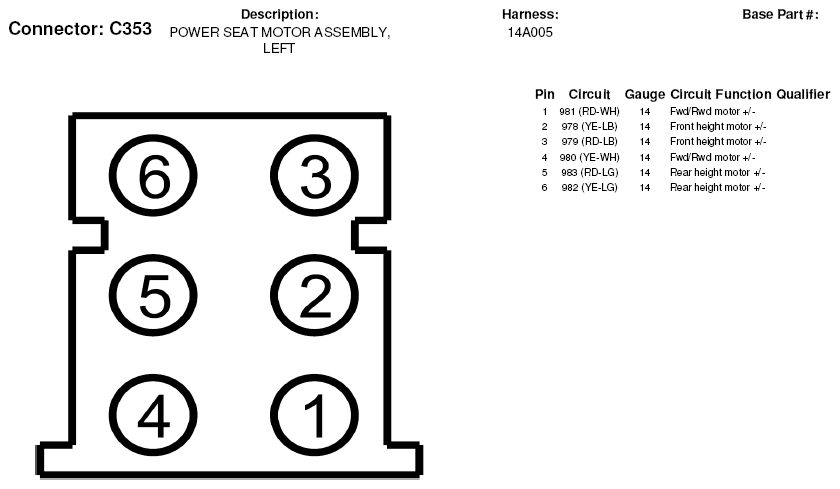

Fig 2: Power Seat Motor Assembly Connector End View (C353)

Courtesy of FORD MOTOR CO.

Fig 3: Power Seat Motor Assembly Connector End View (C368)

Courtesy of FORD MOTOR CO.

Fig 4: Power Seat Motor Assembly Connector End View (C3015)

Courtesy of FORD MOTOR CO.
