Lumbar Adjust Switch Connectors
Lumbar Adjust Switch Connectors

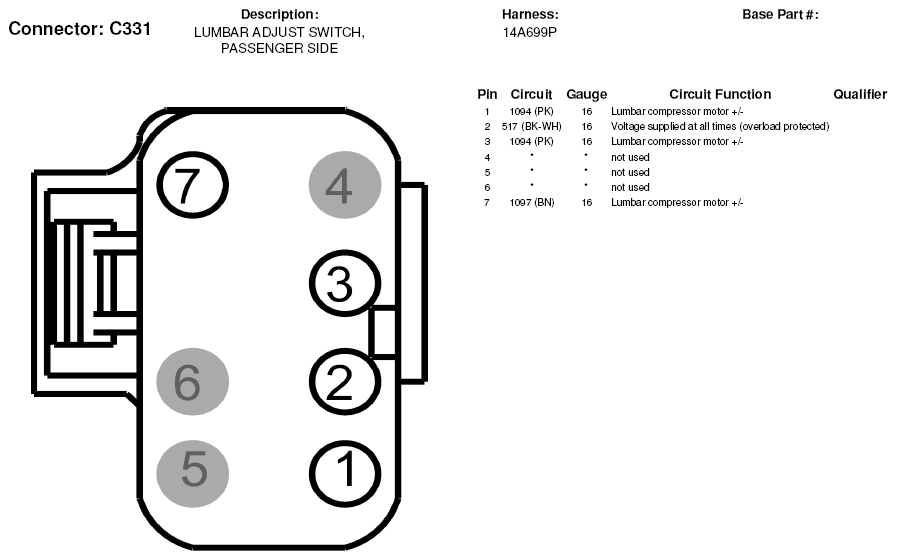

Fig 1: Lumbar Adjust Switch Connector End View (C331)
Courtesy of FORD MOTOR CO.

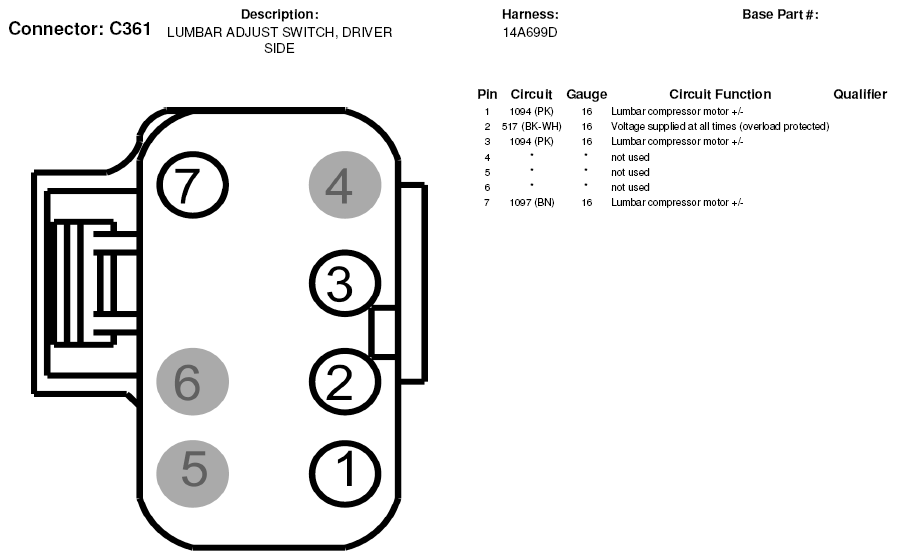

Fig 2: Lumbar Adjust Switch Connector End View (C361)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
