Home >> Ford >> 2007 >> Expedition EL RWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Left Grille Strobe Assembly Connector

Left Grille Strobe Assembly Connector

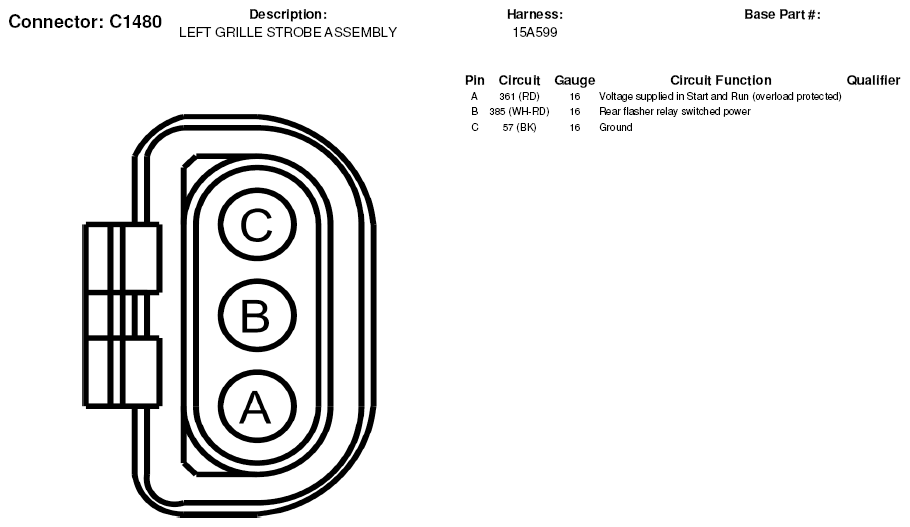

Fig 1: Left Grille Strobe Assembly Connector End View (C1480)

G05179297

Courtesy of FORD MOTOR CO.
