Fog Lamp Connectors

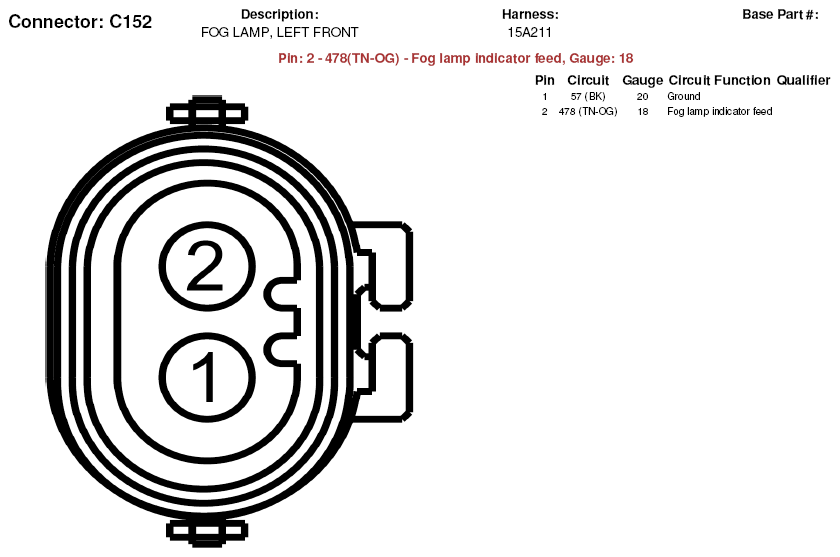

Fig 1: Fog Lamp Connector End View (C152)

G05179077

Courtesy of FORD MOTOR CO.

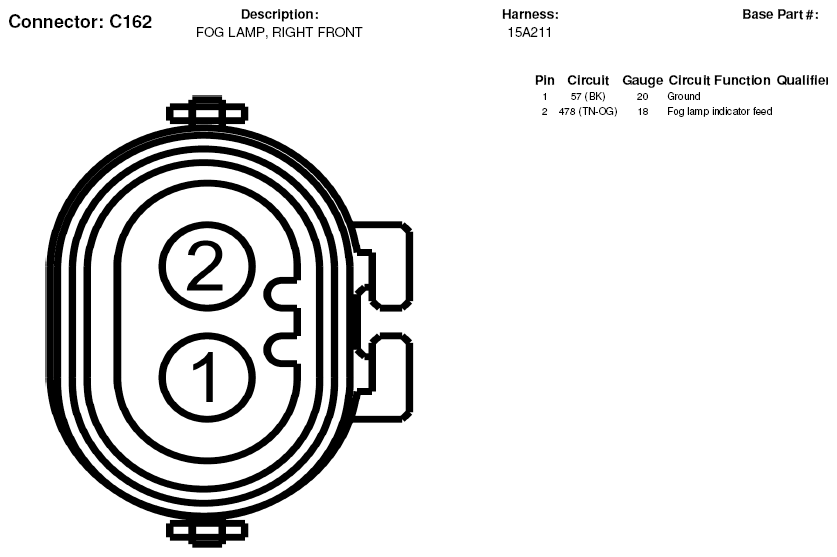

Fig 2: Fog Lamp Connector End View (C162)

G05179080

Courtesy of FORD MOTOR CO.
