Electrochromatic Inside Mirror Unit Connector

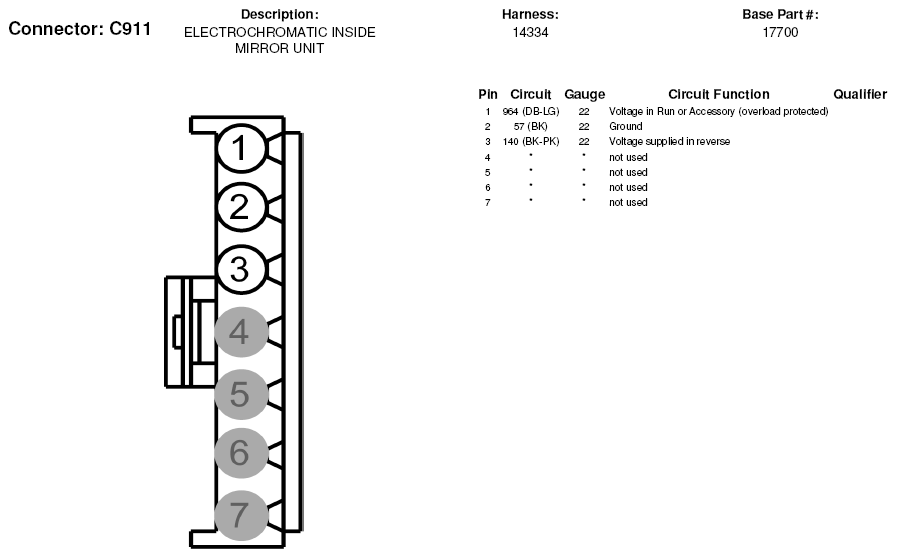

Fig 1: Electrochromatic Inside Mirror Unit Connector End View (C911)

G05179246

Courtesy of FORD MOTOR CO.
