EVAP Canister Vent Control Connector

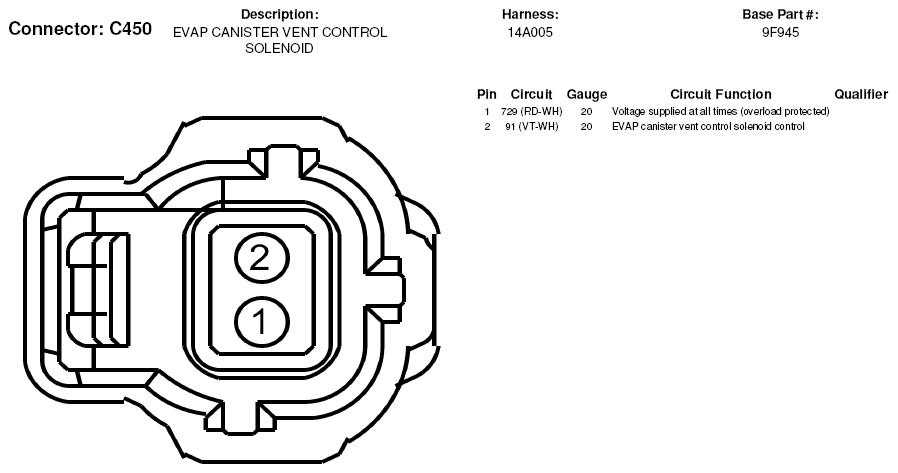

Fig 1: EVAP Canister Vent Control Connector End View (C450)

G05179192

Courtesy of FORD MOTOR CO.
