Driver Seat Lumbar Compressor Connector

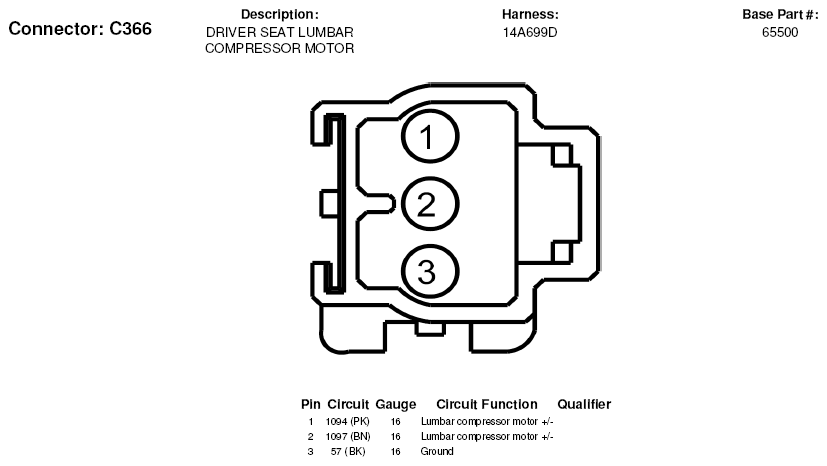

Fig 1: Driver Seat Lumbar Compressor Connector End View (C366)

G05179173

Courtesy of FORD MOTOR CO.
