Courtesy Lamp Connectors

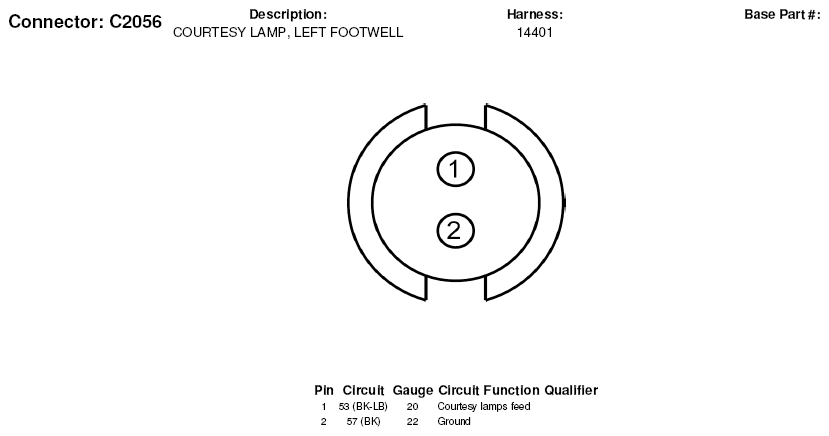

Fig 1: Courtesy Lamp Connector End View (C2056)

G05179306

Courtesy of FORD MOTOR CO.

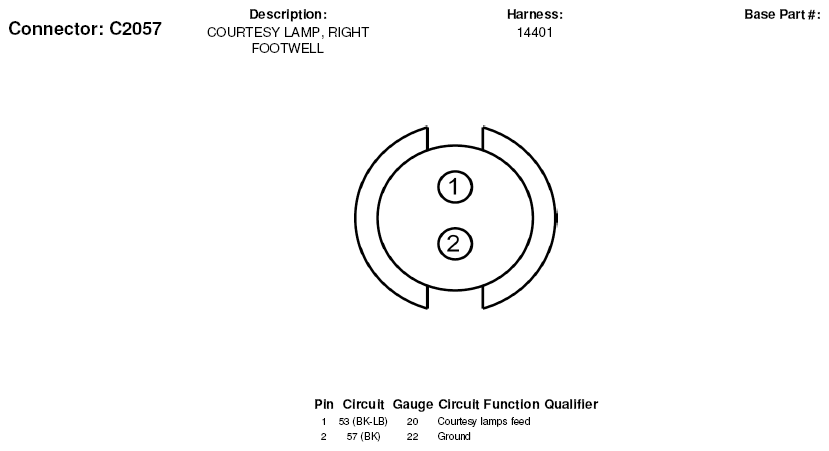

Fig 2: Courtesy Lamp Connector End View (C2057)

G05179307

Courtesy of FORD MOTOR CO.
